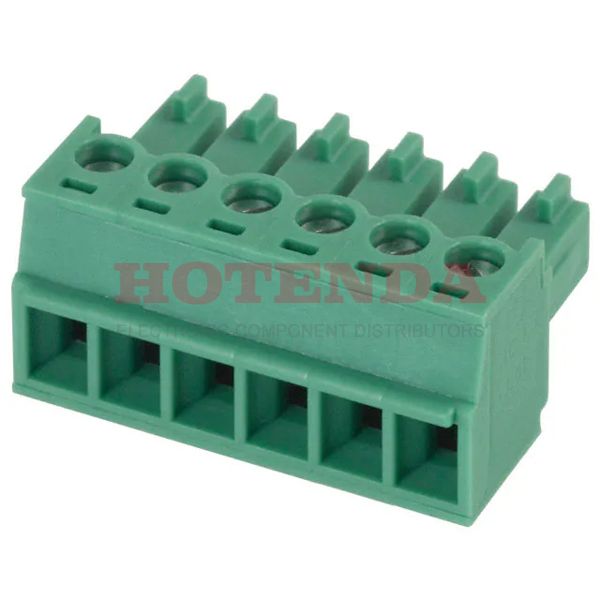

Name: 1836118
Brand: Phoenix Contact
SKU: 1836118
Price: 8.36000 USD
Availability: InStock

new

1836118

Manufacturer part number:1836118

Manufacturer:Phoenix Contact

Description:1836118 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1836118 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	105g
Packaging	Bulk
Published	2010
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug, Screw
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	15.5mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	6
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	400V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Height	15.5mm
Length	30.48mm
Width	22.58mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1836118 Product Details

1836118 Overview

Packaging is in the form of Plug, Screw.This device has a mounting type of Free Hanging (In-Line).It is necessary to use a Bulk case for packaging the product.Among the products in the COMBICON MC Series, it is one of the most popular.Furthermore, there are other features available, such as PA, 94V-0, to name a few.There's a Cable, Free Hanging on the part.Ensure that this chip's supply voltage does not exceed 250V volts.There are a lot of similarities between this part and other Plug, Female Sockets products.
