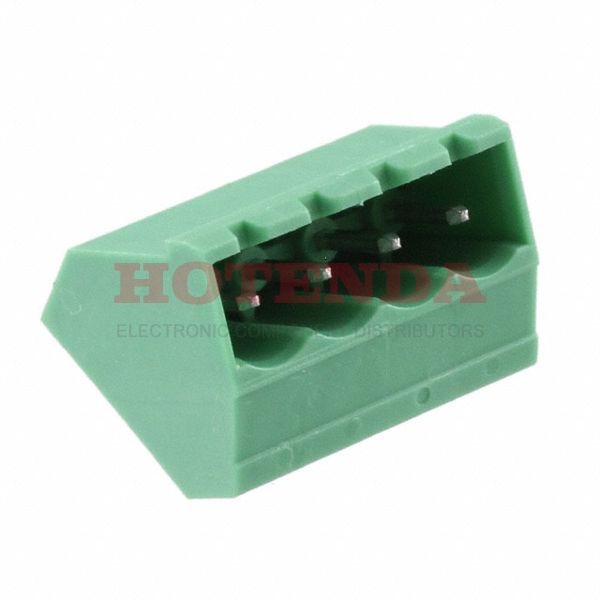

Name: 1769829
Brand: Phoenix Contact
SKU: 1769829
Price: 1.74000 USD
Availability: InStock

new-10%

1769829

Manufacturer part number:1769829

Manufacturer:Phoenix Contact

Description:1769829 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1769829 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	3.282988g
Packaging	Bulk
Published	2003
Series	COMBICON SMSTBA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Socket
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.197 5.00mm
Orientation	45 deg
Depth	16.5mm
Insulation Height	0.583 14.80mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	15A
Number of Decks	1
Voltage - IEC	400V
Number of Ways	4
Safety Approval	UL
Header Orientation	45°
Height	16.5mm
Length	22mm
Width	22mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1769829 Product Details

1769829 Overview

The product comes in a package of Socket.Through Hole is the mounting type for the device.We package the product with a Bulk case.COMBICON SMSTBA Series product.It's mounted by Through Hole.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
