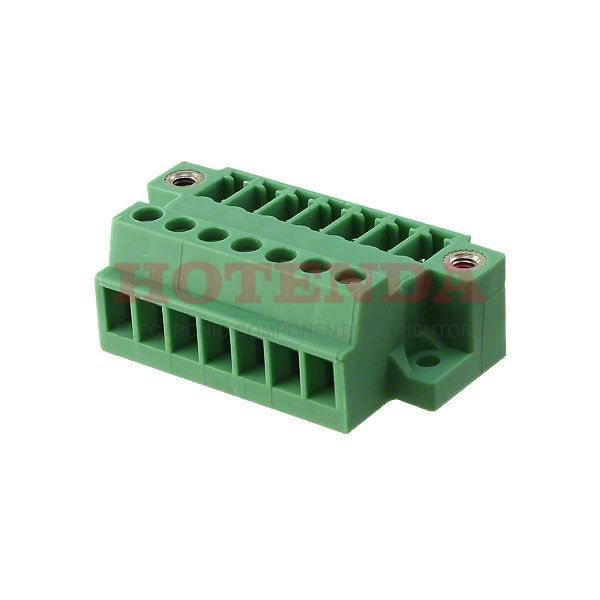

Name: 1833072
Brand: Phoenix Contact
SKU: 1833072
Price: 17.62000 USD
Availability: InStock

new

1833072

Manufacturer part number:1833072

Manufacturer:Phoenix Contact

Description:1833072 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1833072 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Panel
Mounting Type	Board Mount
Housing Material	Polyamide (PA), Nylon
Weight	203.999993g
Packaging	Bulk
Published	2011
Series	COMBICON MCVU
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Type	Receptacle, Male Pins
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Insulation Height	0.492 12.50mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	7
Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	7
Safety Approval	UL
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1833072 Product Details

1833072 Overview

Board Mount is the mounting type of the device.An orange Bulk case is used to package the product.A member of the COMBICON MCVU Series.Additionally, there are features like PA, 94V-0, just to name a few.Its Mating and Mounting Flange feature makes it more powerful in a number of ways.Panel is mounting the part.Other Receptacle, Male Pins products benefit from this part as well.
