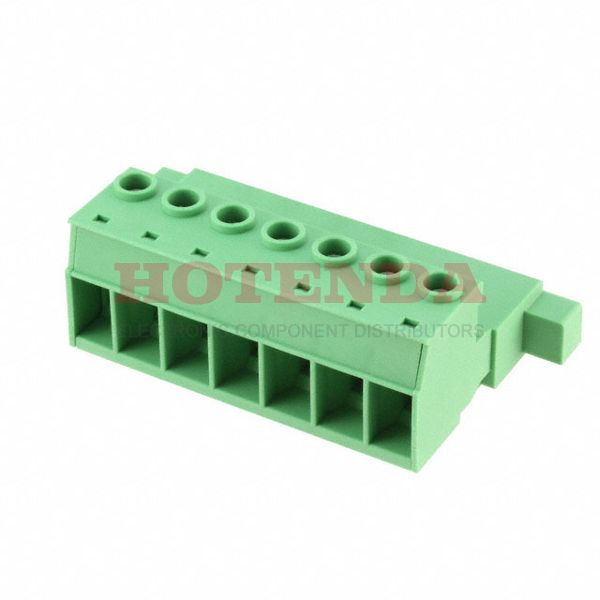

1975862

1975862

1975862

Phoenix Contact

1975862 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1975862 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Silver
Housing Material Polyamide (PA), Nylon
Weight 99.999994g
PackagingBulk
Published 2011
Series COMBICON IPC
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Male Pins
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Additional FeaturePA, UL 94V-0
HTS Code8536.69.40.40
Pitch 0.400 10.16mm
Insulation Height 1.094 27.80mm
Current Rating76A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 55A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 6 AWG
Contact Mating Finish Silver
Voltage - UL 600V
Number of Decks 1
Wire Gauge or Range - AWG 6-20 AWG
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways 7
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.75-16mm2
Wire Strip Length 12mm
Current - IEC 76A
Number of Positions Per Level 7
Screw Size M4
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:167 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$48.75000$48.75
10$47.42200$474.22
50$44.31940$2215.97
100$40.77400$4077.4
250$37.67164$9417.91

1975862 Product Details

1975862 Overview


The product comes in a package of Screw.This device's mounting type is Free Hanging (In-Line).Packaging for the product is carried out via a Bulk case.Among the products in the COMBICON IPC Series, it is one of the most popular.Furthermore, there are other features such as PA, UL 94V-0, to name a few.There are a number of advantages to its Mating Flange feature.There's a Free Hanging on the part.There are a lot of advantages this part has in common with other Plug, Male Pins parts.

1975862 Features


COMBICON IPC series

1975862 Applications


There are a lot of Phoenix Contact 1975862 Terminal Blocks applications.

  • Communication
  • Datacom
  • All Electrical Machinery
  • Electrical substations
  • Anywhere power is distributed
  • Blowers
  • Medical technology
  • Instrumentation
  • Transportation
  • LED municipal outdoor and street lighting
