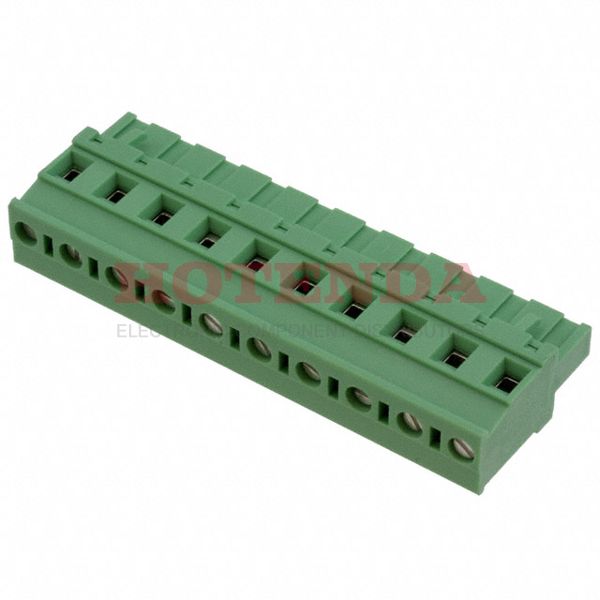

Name: 1832604
Brand: Phoenix Contact
SKU: 1832604
Price: 18.39000 USD
Availability: InStock

new

1832604

Manufacturer part number:1832604

Manufacturer:Phoenix Contact

Description:1832604 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1832604 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	170.097139g
Packaging	Bulk
Published	2011
Series	COMBICON GMVSTBR
Feature	Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	500V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Straight
Depth	12.6mm
Insulation Height	1.024 26.01mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	10
Voltage	300V
Max Supply Voltage	500V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	10
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	26mm
Length	74.43mm
Width	74.16mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1832604 Product Details

1832604 Overview

You get it in Screw, Socket packaging.Mounting type Free Hanging (In-Line) is selected for the device.We use a Bulk case to package the product.This product is in the COMBICON GMVSTBR Series.There are also other features such as PA, 94V-0, to name only a few.Several benefits come from the Retention Latches (Wire Side) feature.Mounting of the part is based on Cable, Free Hanging.There should be no voltage over 500V on the supply line of this chip.There are a lot of similarities between this part and other Plug, Female Sockets products.
