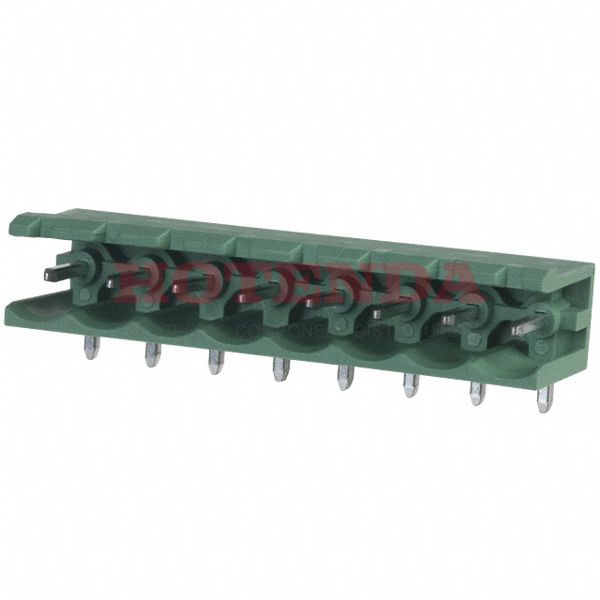

Name: 1759075
Brand: Phoenix Contact
SKU: 1759075
Price: 2.91000 USD
Availability: InStock

new-10%

1759075

Manufacturer part number:1759075

Manufacturer:Phoenix Contact

Description:1759075 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1759075 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper, Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	151.999994g
Packaging	Bulk
Published	2003
Series	COMBICON MSTB
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (2 Side)
Number of Positions	8
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	STANDARD: UL 94V-0, PA, SAFETY APPROVAL :VDE
Voltage - Rated DC	320V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Approval Agency	CSA, EN, UL, VDE
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	15A
Number of Poles	8
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	400V
Number of Ways	8
Safety Approval	CB; CCA; CSA; CUL; EAC; UL
Header Orientation	90°, Right Angle
Fastening Method	CONNECTOR
Height	12.1mm
Length	45.68mm
Width	40.64mm
Thickness	35.56mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1759075 Product Details

1759075 Overview

Mounting type is Through Hole.Packaged in a Bulk case.It's from the COMBICON MSTB Series.Besides that, there's also STANDARD: UL 94V-0, PA, SAFETY APPROVAL :VDE, to name a few.Mounting of the part is based on Through Hole.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (2 Side) products.
