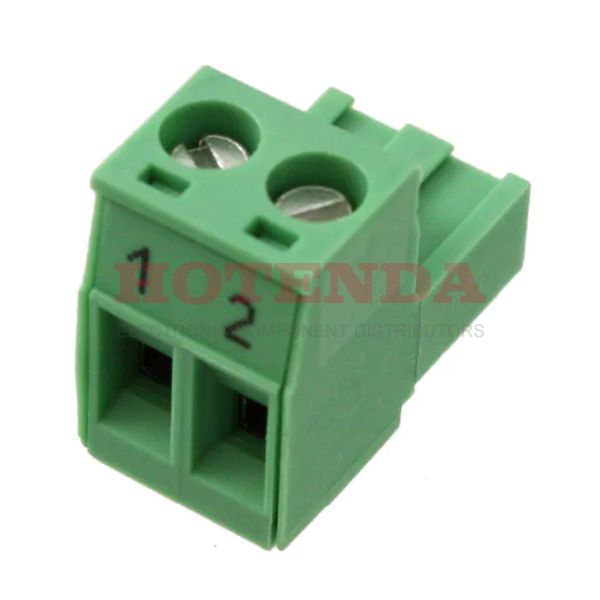

Name: 1829756
Brand: Phoenix Contact
SKU: 1829756
Price: 2.31000 USD
Availability: InStock

new-10%

1829756

Manufacturer part number:1829756

Manufacturer:Phoenix Contact

Description:1829756 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1829756 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Weight	1.999889kg
Packaging	Bulk
Published	2010
Series	COMBICON MSTB
Feature	Positions Stamped, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	2
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Safety Approval	UL; VDE; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Height	15mm
Length	5mm
Width	18.2mm
RoHS Status	RoHS Compliant

1829756 Product Details

1829756 Overview

This product is packaged in a Screw, Socket box.Free Hanging (In-Line) is the mount type.It's packaged in a Bulk case.COMBICON MSTB Series product.As a result of its Positions Stamped, Retention Latches (Non-Wire Side) feature, it possesses a great deal of power.By Free Hanging, Plug-In it's mounted.Other Plug, Female Sockets products share lots of benefits with this part.
