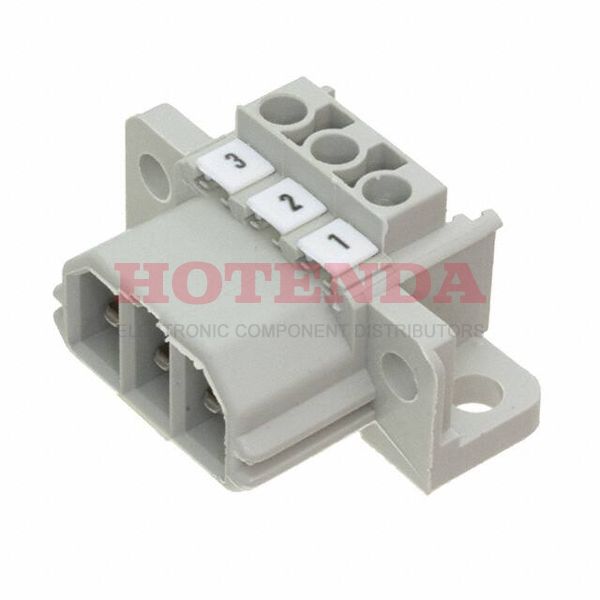

Name: 1611980000
Brand: Weidmüller
SKU: 1611980000
Price: 7.23000 USD
Availability: InStock

new

1611980000

Manufacturer part number:1611980000

Manufacturer:Weidmüller

Description:1611980000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1611980000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Shell Material	POLYAMIDE
Housing Material	Thermoplastic, Wemid
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Powermate STV
JESD-609 Code	e4
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Blade Pins
Color	Gray
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.276 7.00mm
Total Number of Contacts	3
Orientation	Right Angle
Ingress Protection	IP20
Depth	30.2mm
Insulation Height	0.843 21.41mm
Current Rating	32A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
Contact Gender	MALE
UL Flammability Code	94V-0
Housing Color	Grey
Empty Shell	NO
Voltage	600V
Max Supply Voltage	600V
Max Current Rating	25A
Number of Levels	1
Current	25A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	12 AWG
Contact Mating Finish	Silver
Wire Gauge or Range - AWG	12-22 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.5-4mm2
Current - IEC	32A
Number of Positions Per Level	3
Screw Size	M3
Stripping Length	9mm
Length	43mm
Width	21.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1611980000 Product Details

1611980000 Overview

There is a mounting type of Free Hanging (In-Line) for this device.We pack the product in a Bulk case.Among the products in the Powermate STV Series, it is one of the most popular.In many ways, its Mating Flange feature makes it more powerful.Mounted by Free Hanging, Panel.There is no operating temperature for the device.This chip should not be supplied with voltages greater than zero.Many Plug, Blade Pins products share the same benefits as this part.
