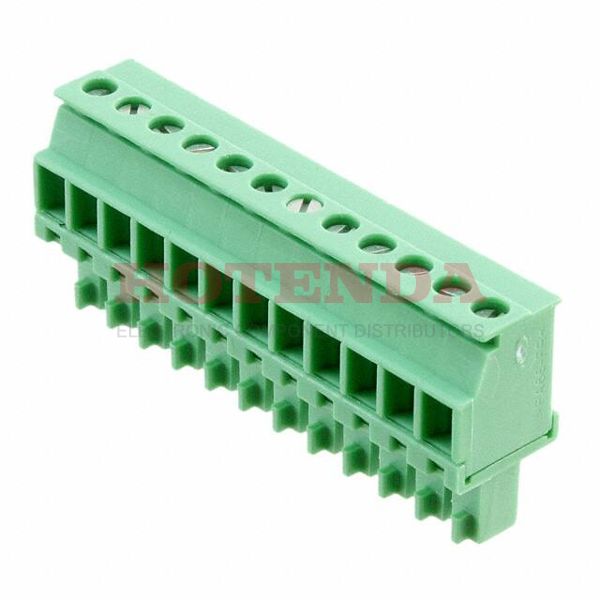

Name: 1827224
Brand: Phoenix Contact
SKU: 1827224
Price: 15.78000 USD
Availability: InStock

new

1827224

Manufacturer part number:1827224

Manufacturer:Phoenix Contact

Description:1827224 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1827224 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	99.999994g
Packaging	Bulk
Published	2001
Series	COMBICON MCVR
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Voltage - Rated DC	160V
Pitch	0.150 3.81mm
Orientation	Straight
Depth	19.1mm
Insulation Height	0.752 19.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	160V
Approval Agency	CB, CSA, UL, VDE, cULus
Lead Pitch	3.81mm
Number of Contacts	12
Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	28 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.14-1.5mm2
Screw Size	M2
Stripping Length	7mm
Height	12.5mm
Length	10.4mm
Width	46.21mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1827224 Product Details

1827224 Overview

It comes in Screw, Socket packaging.Mounting type Free Hanging (In-Line) is selected for the device.Packaged in a Bulk case.COMBICON MCVR Series product.Furthermore, there are other features available, such as PA, 94V-0, to name a few.You've got Cable, Free Hanging mounted on the part.Other Plug, Female Sockets products share lots of benefits with this part.
