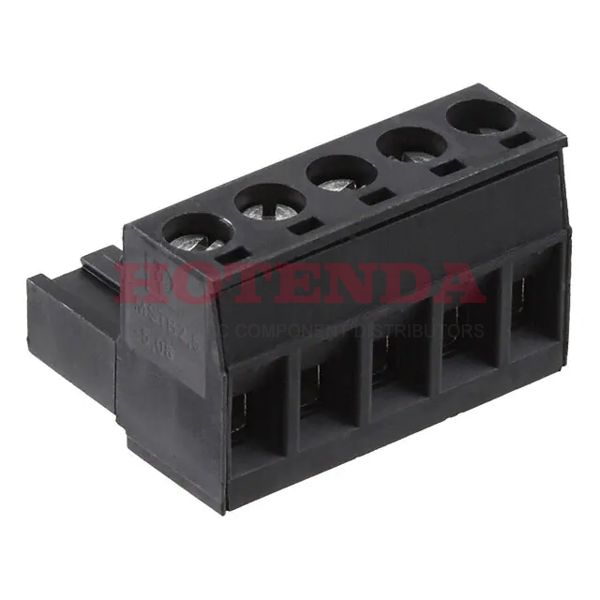

Name: 1758814
Brand: Phoenix Contact
SKU: 1758814
Price: 5.21000 USD
Availability: InStock

new-10%

1758814

Manufacturer part number:1758814

Manufacturer:Phoenix Contact

Description:1758814 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1758814 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Weight	8.789996g
Packaging	Bulk
Published	2011
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	5
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	5
Safety Approval	CB; CSA; CUL; GOST; UL; VDE
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Height	18.3mm
Length	15mm
Width	25.4mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1758814 Product Details

1758814 Overview

This product is packaged in a Screw, Socket carton.Mounting type is Free Hanging (In-Line).We use a Bulk case to package the product.It's part of the COMBICON MSTB Series.A number of benefits can be derived from the Retention Latches (Non-Wire Side) feature of this application.There is a Free Hanging, Plug-In mount on the part.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
