Name: 1843871
Brand: Phoenix Contact
SKU: 1843871
Price: 6.59000 USD
Availability: InStock

new-10%

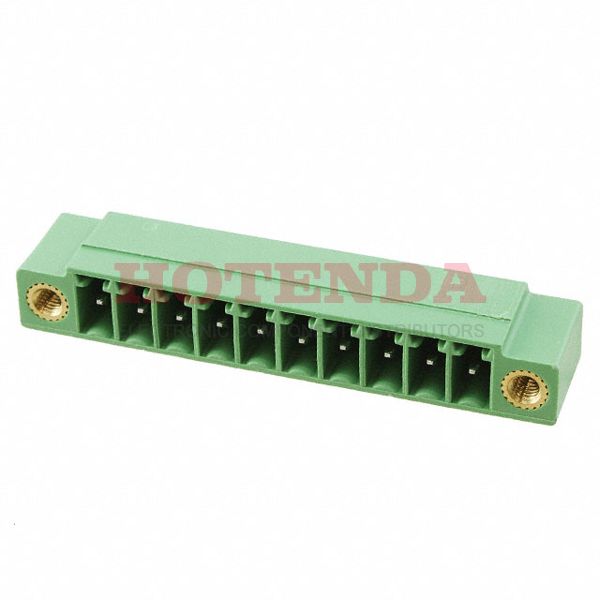

1843871

Manufacturer part number:1843871

Manufacturer:Phoenix Contact

Description:1843871 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1843871 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2011
Series	COMBICON MC
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	10
Number of Decks	1
Voltage - IEC	250V
Number of Ways	10
Safety Approval	UL
Header Orientation	90°, Right Angle
Height	10.65mm
Length	45.3mm
Width	45.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1843871 Product Details

1843871 Overview

The product is packaged in Plug.This device has a Through Hole mounting type.It is necessary to use a Bulk case for packaging the product.The product belongs to the COMBICON MC Series.This feature makes it more powerful in a number of ways due to its Mating and Mounting Flange feature.This part is mounted by Through Hole. As with other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits.
