1823146

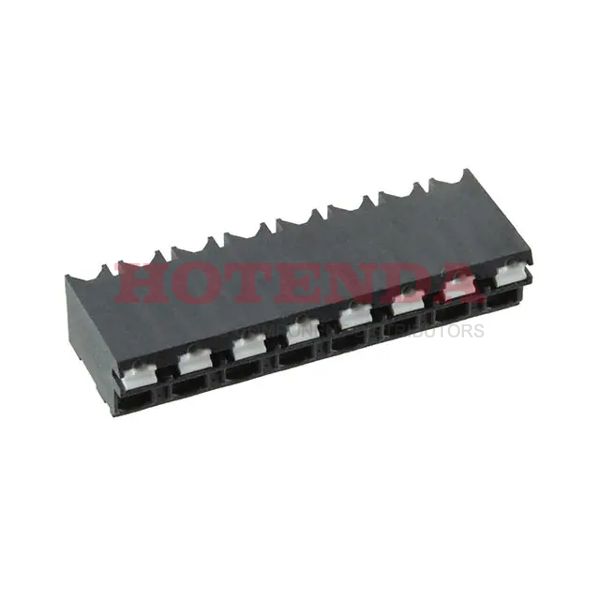

  • 1823146 - 0.200 5.08mm Black Tape & Reel (TR) Liquid Crystal Polymer (LCP) Through Hole Horizontal with Board Screwless - Leg Spring, Push-In Spring 1 Levels 16-24 AWG COMBICON SPT-THR
  • 1823146 - 0.200 5.08mm Black Tape & Reel (TR) Liquid Crystal Polymer (LCP) Through Hole Horizontal with Board Screwless - Leg Spring, Push-In Spring 1 Levels 16-24 AWG COMBICON SPT-THR

1823146

1823146

Phoenix Contact

0.200 5.08mm Black Tape & Reel (TR) Liquid Crystal Polymer (LCP) Through Hole Horizontal with Board Screwless - Leg Spring, Push-In Spring 1 Levels 16-24 AWG COMBICON SPT-THR

SOT-23

1823146 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact PlatingTin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Contact Material - Plating Tin Plated
PackagingTape & Reel (TR)
Series COMBICON SPT-THR
Published 2014
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Color Black
Pitch 0.200 5.08mm
Wire Gauge16-24 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Mating Orientation Horizontal with Board
Wire TerminationScrewless - Leg Spring, Push-In Spring
Number of Positions Per Level 8
RoHS StatusRoHS Compliant
In-Stock:1531 items

Pricing & Ordering

QuantityUnit PriceExt. Price
60$4.52100$271.26

1823146 Product Details

1823146 Overview


Through Hole is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the COMBICON SPT-THR Series.It is mounted by Through Hole.

1823146 Features


COMBICON SPT-THR series


1823146 Applications


There are a lot of Phoenix Contact
1823146 Terminal Blocks applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
