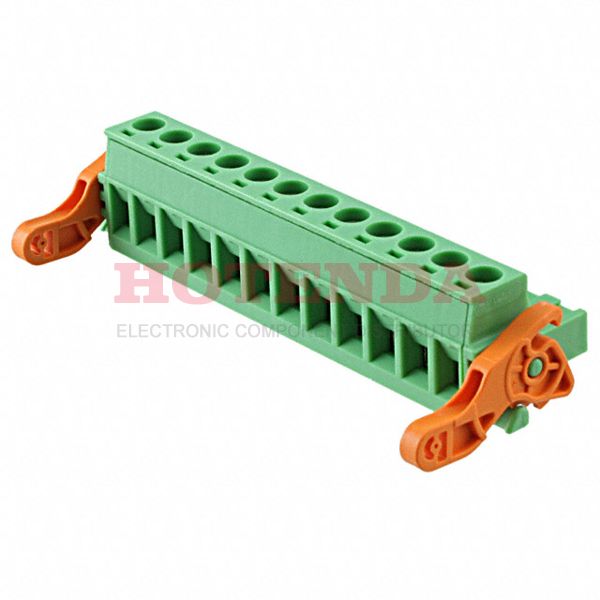

Name: 1808983
Brand: Phoenix Contact
SKU: 1808983
Price: 12.52000 USD
Availability: InStock

new

1808983

Manufacturer part number:1808983

Manufacturer:Phoenix Contact

Description:1808983 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1808983 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2012
Series	COMBICON MSTB
Feature	Ejector Latches
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	15mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Number of Positions Per Level	12
Screw Size	M3
Length	61.58mm
Width	29.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1808983 Product Details

1808983 Overview

A Screw package is included with it.This device has a Free Hanging (In-Line) mounting type.Packaged in a Bulk case.This product is from the COMBICON MSTB Series.A number of advantages can be derived from its Ejector Latches feature.Free Hanging, Plug-In is the mounting point for the part.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
