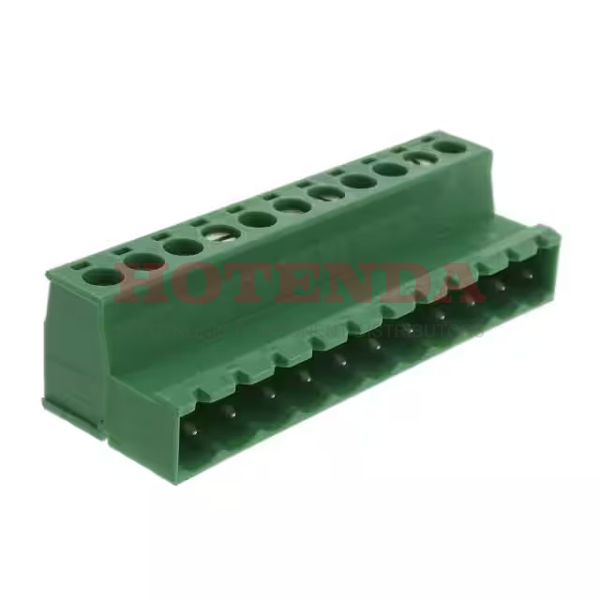

Name: 1786268
Brand: Phoenix Contact
SKU: 1786268
Price: 19.07000 USD
Availability: InStock

new

1786268

Manufacturer part number:1786268

Manufacturer:Phoenix Contact

Description:1786268 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1786268 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	137.000006g
Packaging	Bulk
Published	2011
Series	COMBICON IC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug, Screw
Type	Plug, Male Pins
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	15mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE
Voltage	300V
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	10A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	11
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Number of Positions Per Level	11
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	19.2mm
Length	7mm
Width	57.38mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1786268 Product Details

1786268 Overview

The product comes in a package of Plug, Screw.Free Hanging (In-Line) is the mount type.Packaged in a Bulk case.It's part of the COMBICON IC Series.Additionally, there are other features such as PA, 94V-0.It is mounted by Free Hanging, Plug-In.There are a lot of similarities between this part and other Plug, Male Pins products.
