Name: 1804797
Brand: Phoenix Contact
SKU: 1804797
Price: 3.84000 USD
Availability: InStock

new-10%

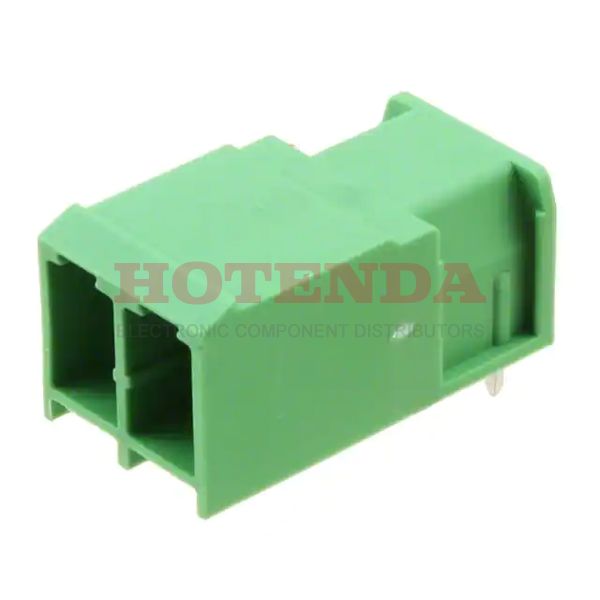

1804797

Manufacturer part number:1804797

Manufacturer:Phoenix Contact

Description:1804797 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1804797 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper, Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	1.814369kg
Packaging	Bulk
Published	1998
Series	COMBICON PC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	630V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	29mm
Insulation Height	1.142 29.00mm
Current Rating	20A
Termination Style	Solder
Approval Agency	CSA, UL
Lead Pitch	7.62mm
Voltage	300V
Contact Tail Length	0.197 5.00mm
Max Current Rating	20A
Number of Levels	1
Current	20A
Number of Poles	2
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	630V
Number of Ways	2
Safety Approval	UL
Header Orientation	90°, Right Angle
Height	14.4mm
Length	15.22mm
Width	29mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1804797 Product Details

1804797 Overview

Currently, it is packaged in Plug.This device's mounting type is Through Hole.We pack the product in a Bulk case.A member of the COMBICON PC Series.In addition, there are other features, such as PA, 94V-0, to mention just a few.Mounted by Through Hole.Other Header, Male Pins, Shrouded (4 Side) products benefit from this part as well.
