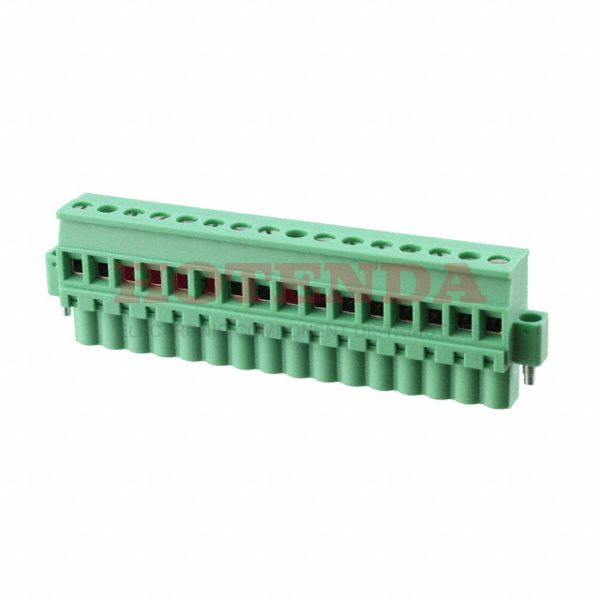

Name: 1835041
Brand: Phoenix Contact
SKU: 1835041
Price: 18.25000 USD
Availability: InStock

new

1835041

Manufacturer part number:1835041

Manufacturer:Phoenix Contact

Description:1835041 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1835041 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	133.000002g
Packaging	Bulk
Published	2011
Series	COMBICON MVSTBW
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	16
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	1.024 26.01mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	16
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	26mm
Length	12.6mm
Width	91.44mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1835041 Product Details

1835041 Overview

You get it in Socket packaging.Mounting type Free Hanging (In-Line) is selected for the device.In order to package the product, a Bulk case is used.It's part of the COMBICON MVSTBW Series.In addition, there are other features, such as PA, 94V-0, to mention just a few.Several benefits come from the Mating Flange, Retention Latches (Non-Wire Side) feature.It is mounted by Free Hanging.Other Plug, Female Sockets products share lots of benefits with this part.
