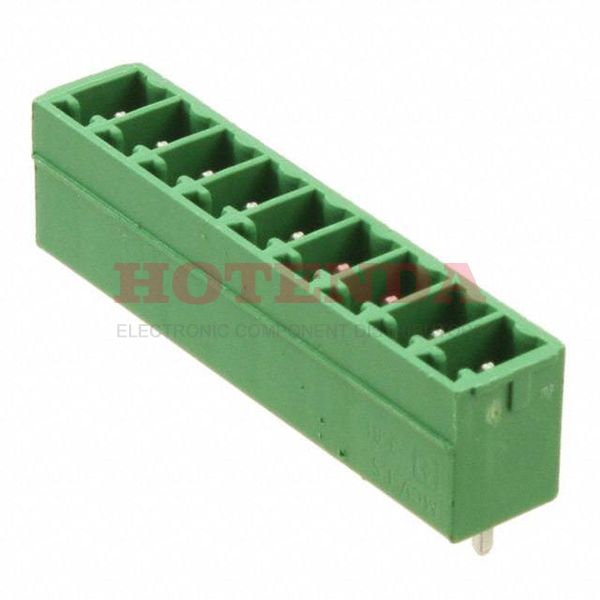

Name: 1803497
Brand: Phoenix Contact
SKU: 1803497
Price: 4.05000 USD
Availability: InStock

new-10%

1803497

Manufacturer part number:1803497

Manufacturer:Phoenix Contact

Description:1803497 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1803497 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2001
Series	COMBICON MCV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated DC	640mV
Pitch	0.150 3.81mm
Orientation	Straight
Depth	7.25mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
Voltage - Rated AC	160V
Approval Agency	CSA, UL
Lead Pitch	3.81mm
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	9
Number of Decks	1
Voltage - IEC	250V
Number of Ways	9
Safety Approval	CB; CSA; CUL; EAC; EN; UL; VDE
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	12.6mm
Length	35.68mm
Width	7.25mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1803497 Product Details

1803497 Overview

A Plug packaging is included.Mounting type Through Hole is selected for the device.An orange Bulk case is used to package the product.There is a product in the COMBICON MCV Series.There is a mounting hole at Through Hole.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
