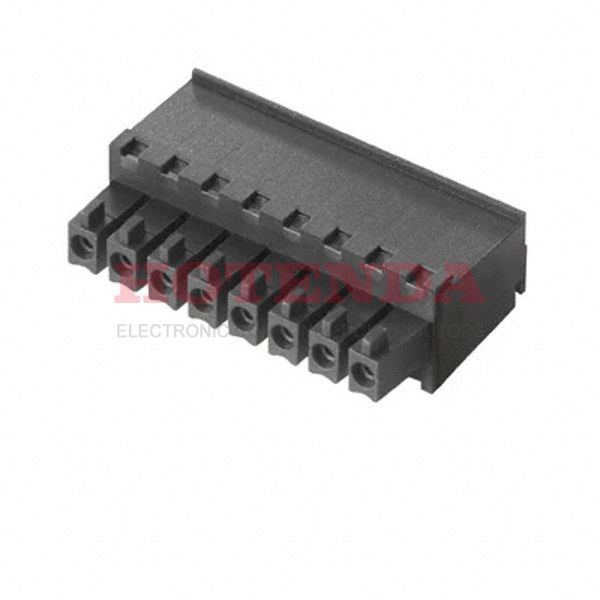

Name: 1798170000
Brand: Weidmüller
SKU: 1798170000
Price: 6.18000 USD
Availability: InStock

new-10%

1798170000

Manufacturer part number:1798170000

Manufacturer:Weidmüller

Description:1798170000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1798170000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2004
Series	Omnimate BC
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.150 3.81mm
Orientation	Straight
Ingress Protection	IP20
Insulation Height	0.411 10.44mm
Current Rating	17.5A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, cURus
Number of Contacts	8
UL Flammability Code	94V-0
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	17.5A
Screw Size	M2
Stripping Length	7mm
Height	12.5mm
Length	31mm
Width	10.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1798170000 Product Details

1798170000 Overview

Free Hanging (In-Line) is the mounting type for the device.Packaging the product involves using a Bulk case.Omnimate BC Series product.Mounted by Cable, Free Hanging.Operating temperature is set to -50°C~120°C.
