1792702

1792702

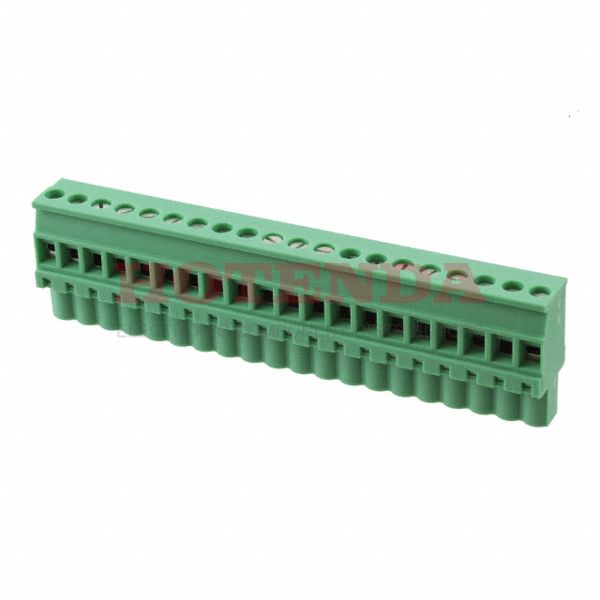

1792702

Phoenix Contact

1792702 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1792702 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 499.858792g
PackagingBulk
Published 2011
Series COMBICON MVSTBW
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 20
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.496 12.60mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 20
Safety Approval UL
Plug Wire Entry 270°
Wire Gauge or Range - mm² 0.2-2.5mm2
Current - IEC 12A
Screw Size M3
Wire Cross Section 2.5 mm2
Height 26mm
Length 7mm
Width 100mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:400 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$22.08000$22.08
10$21.48100$214.81
50$20.07600$1003.8
100$18.47000$1847
250$17.06464$4266.16
500$16.26162$8130.81

1792702 Product Details

1792702 Overview


The product comes in a package of Socket.There is a mounting type of Free Hanging (In-Line) for this device.The product is packaged in a Bulk case.It's part of the COMBICON MVSTBW Series.Also, there's PA, 94V-0, to name a few.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.By Free Hanging it's mounted.This part shares lots of benefits with other Plug, Female Sockets products.

1792702 Features


COMBICON MVSTBW series

1792702 Applications


There are a lot of Phoenix Contact 1792702 Terminal Blocks applications.

  • Refrigeration control
  • Electrical substations
  • Medical technology
  • Embedded systems
  • Control panels
  • Telecommunications
  • Variable speed/frequency drivers
  • Anywhere power is distributed
  • Data Technology
  • Transportation
