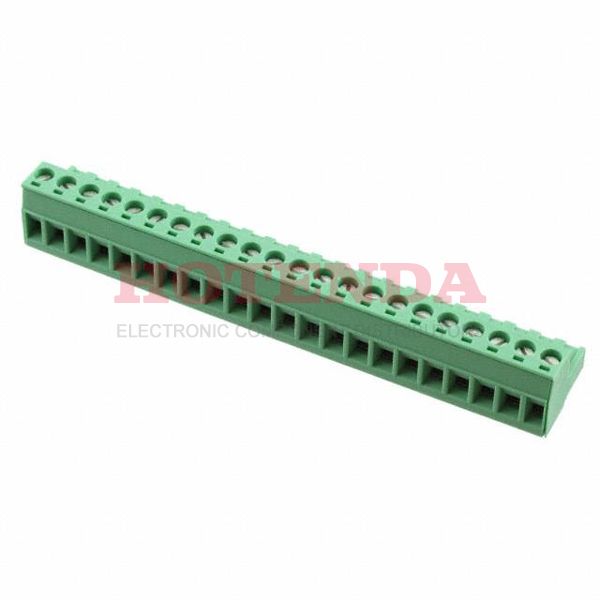

Name: 1754847
Brand: Phoenix Contact
SKU: 1754847
Price: 18.95000 USD
Availability: InStock

new

1754847

Manufacturer part number:1754847

Manufacturer:Phoenix Contact

Description:1754847 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1754847 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	350.000009g
Packaging	Bulk
Published	2003
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	22
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Number of Positions Per Level	22
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	15mm
Width	110mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1754847 Product Details

1754847 Overview

Screw, Socket packaging is included.This device is mounted in the Free Hanging (In-Line) position.A Bulk case is used for packaging.There is a product in the COMBICON MSTB Series.Among other features are PA, 94V-0, to name only a few.Its Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.Free Hanging, Plug-In is used to mount the part.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
