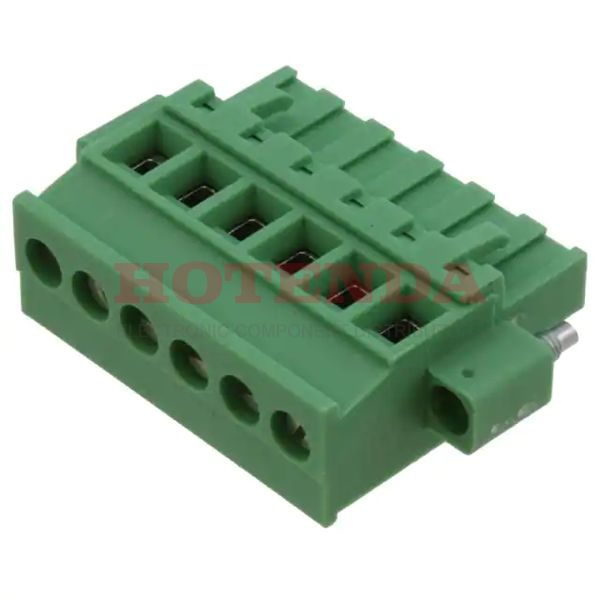

Name: 1835135
Brand: Phoenix Contact
SKU: 1835135
Price: 8.33000 USD
Availability: InStock

new-10%

1835135

Manufacturer part number:1835135

Manufacturer:Phoenix Contact

Description:1835135 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1835135 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	133.000002g
Packaging	Bulk
Published	2011
Series	COMBICON MVSTBR
Feature	Mating Flange, Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	6
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Depth	4.4mm
Insulation Height	1.024 26.01mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	26mm
Length	3mm
Width	40.64mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1835135 Product Details

1835135 Overview

This product is packaged in a Screw, Socket box.Mounting type Free Hanging (In-Line) is selected for the device.To package the product, we use a Bulk case.The product is a part of the COMBICON MVSTBR Series.Other features include PA, 94V-0, to name just a few.Temperatures below 85°C are best for using it.There must be a minimum temperature of -40°C.It is more powerful in many ways due to its Mating Flange, Retention Latches (Wire Side) feature.Mounted by Free Hanging.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
