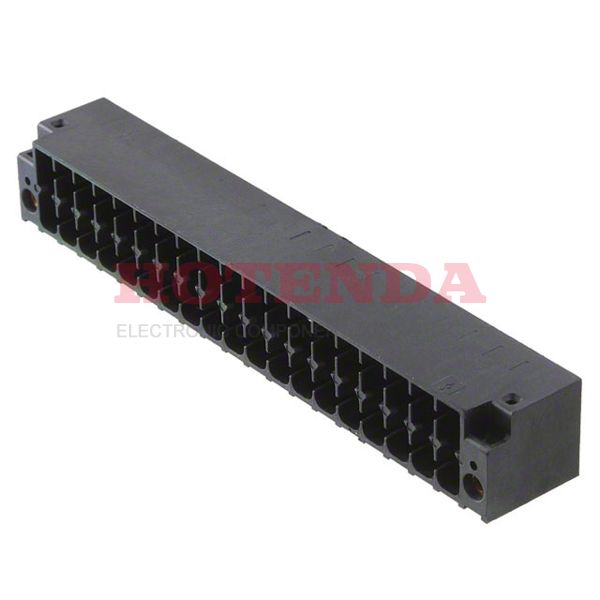

Name: 1787182
Brand: Phoenix Contact
SKU: 1787182
Price: 15.63000 USD
Availability: InStock

new

1787182

Manufacturer part number:1787182

Manufacturer:Phoenix Contact

Description:1787182 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1787182 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Packaging	Bulk
Published	2013
Series	COMBICON DMC
Feature	Mating and Mounting Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	38
Color	Black
Number of Rows	2
Voltage - Rated	160V
Additional Feature	STANDARD: UL 94V-0, LCP
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Insulation Height	0.425 10.80mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Solder
Voltage	150V
Contact Tail Length	0.079 2.00mm
Number of Levels	2
Current	8A
Number of Decks	1
Voltage - IEC	250V
Positions Per Level	19
Number of Ways	19
Safety Approval	CB; CUL; UL; VDE
Header Orientation	90°, Right Angle
Fastening Method	CONNECTOR
Height	12.8mm
Length	11.6mm
Width	73.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1787182 Product Details

1787182 Overview

This product is packaged in a Plug carton.Mounting type Through Hole is assigned to the device.Packaging for the product is carried out via a Bulk case.Among the products in the COMBICON DMC Series, it is one of the most popular.Additionally, there are other features such as STANDARD: UL 94V-0, LCP.A number of aspects of its Mating and Mounting Flange feature make it more powerful.This part is mounted by Through Hole. Many Header, Male Pins, Shrouded (4 Side) products share the same benefits as this part.
