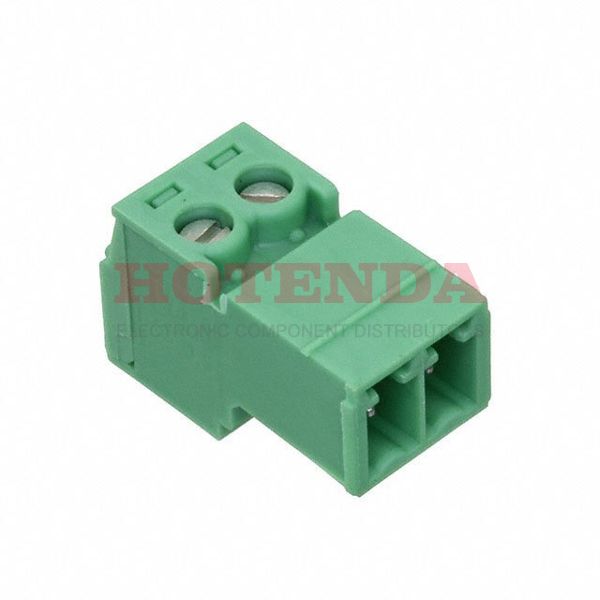

1857883

1857883

1857883

Phoenix Contact

1857883 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1857883 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact PlatingTin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 102.999998g
PackagingBulk
Published 2010
Series COMBICON IMC
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Plug, Screw
Type Plug, Male Pins
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 160V
HTS Code8536.69.40.40
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 11.1mm
Insulation Height 0.437 11.10mm
Reach Compliance Code not_compliant
Current Rating8A
Termination Style Screw - Rising Cage Clamp
Approval Agency CB, VDE, cULus
Number of Contacts 2
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 28 AWG
Wire/Cable Gauge 16 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 2
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Height 11.1mm
Length 8.41mm
Width 17.9mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:2352 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.843248$0.843248
10$0.795517$7.95517
100$0.750488$75.0488
500$0.708007$354.0035
1000$0.667931$667.931

1857883 Product Details

1857883 Overview


It comes in a Plug, Screw package.This device is mounted in the Free Hanging (In-Line) position.In order to package the product, a Bulk case is used.The product is a member of the COMBICON IMC Series.There is a mounting hole at Cable, Free Hanging.With this part, you get a lot of benefits that you won't find in other Plug, Male Pins products.

1857883 Features


COMBICON IMC series

1857883 Applications


There are a lot of Phoenix Contact 1857883 Terminal Blocks applications.

  • Military Technology
  • Transportation
  • Datacom
  • Blowers
  • All Electrical Machinery
  • Anywhere power is distributed
  • Electrical substations
  • Industrial Automation
  • Refrigeration control
  • Control panels
