Home

1781069

1781069

1781069

Phoenix Contact

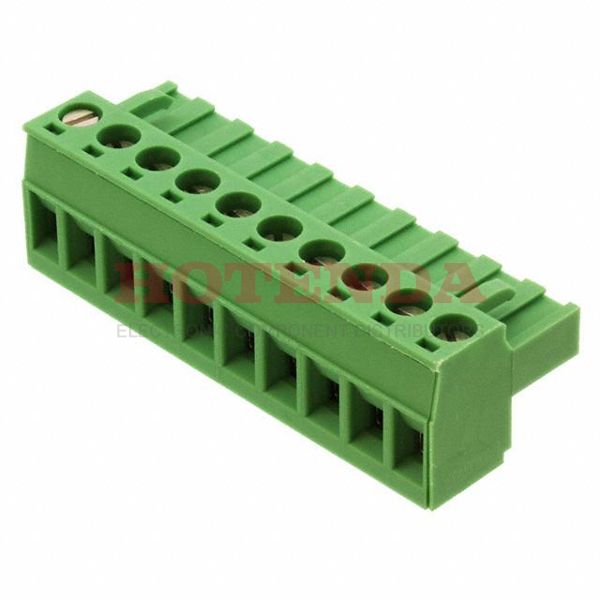

1781069 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1781069 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 129.999998g
PackagingBulk
Published 2011
Series COMBICON MSTBT
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Pitch 0.200 5.08mm
Orientation Right Angle
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 10
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 12A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 10
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 2.5 mm2
Height 18.2mm
Length 15mm
Width 50.8mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:463 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$16.883413$16.883413
10$15.927749$159.27749
100$15.026177$1502.6177
500$14.175639$7087.8195
1000$13.373245$13373.245

1781069 Product Details

1781069 Overview


The product comes in a package of Screw, Socket.Free Hanging (In-Line) is the mounting type of the device.We pack the product in a Bulk case.A product of the COMBICON MSTBT Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as PA, 94V-0, to name a few.It is more powerful in many ways due to its Retention Latches (Non-Wire Side) feature.There's a Cable, Free Hanging on the part.There are a lot of similarities between this part and other Plug, Female Sockets products.

1781069 Features


COMBICON MSTBT series

1781069 Applications


There are a lot of Phoenix Contact 1781069 Terminal Blocks applications.

  • Industrial Automation
  • Control panels
  • Transportation
  • Military Technology
  • Medical technology
  • LED municipal outdoor and street lighting
  • Embedded systems
  • Telecommunications
  • Refrigeration control
  • Data Technology
