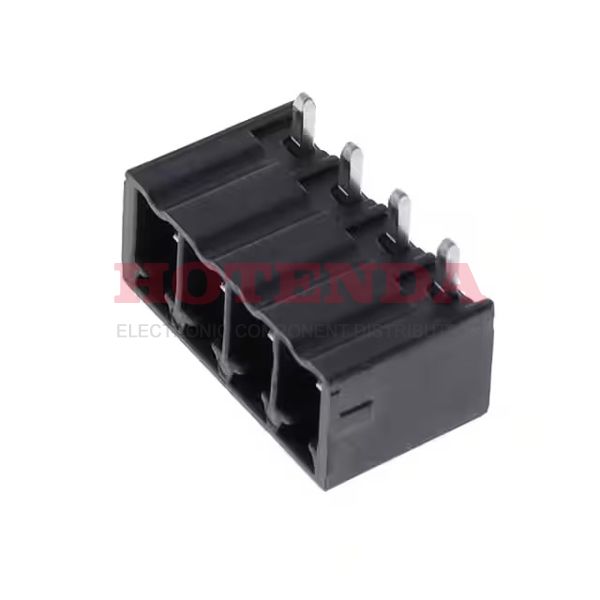

Name: 1782488
Brand: Phoenix Contact
SKU: 1782488
Price: 3.44000 USD
Availability: InStock

new-10%

1782488

Manufacturer part number:1782488

Manufacturer:Phoenix Contact

Description:1782488 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1782488 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Packaging	Tape & Reel (TR)
Published	2014
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Color	Black
Number of Rows	1
Voltage - Rated	160V
Pitch	0.150 3.81mm
Insulation Height	0.272 6.91mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.102 2.60mm
Number of Levels	1
Current	8A
Number of Decks	1
Voltage - IEC	250V
Number of Ways	4
Safety Approval	CUL; GOST; UL
Header Orientation	90°, Right Angle
Fastening Method	CONNECTOR
Height	9.5mm
Length	9.2mm
Width	16.33mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1782488 Product Details

1782488 Overview

The packaging contains Plug.This device is mounted in the Through Hole position.The product is packaged in a Tape & Reel (TR) case.Product number COMBICON MC belongs to the COMBICON MC Series.There is a mounting hole at Through Hole.It shares many benefts with other Header, Male Pins, Shrouded (4 Side) products.
