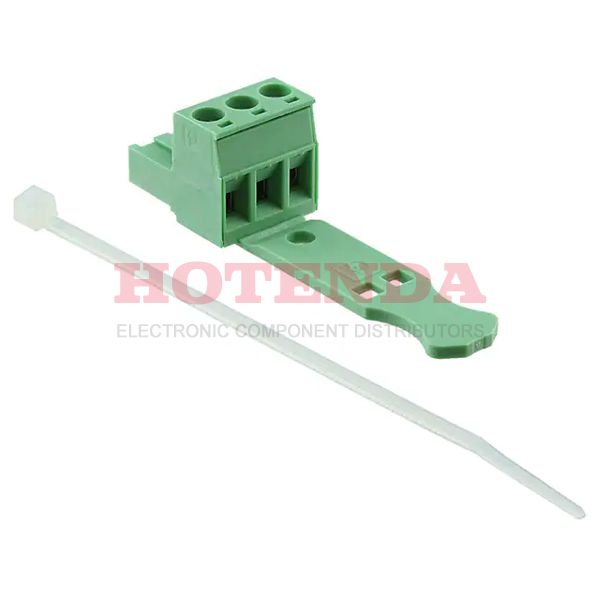

Name: 1776168
Brand: Phoenix Contact
SKU: 1776168
Price: 4.75000 USD
Availability: InStock

new-10%

1776168

Manufacturer part number:1776168

Manufacturer:Phoenix Contact

Description:1776168 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1776168 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	128.999997g
Packaging	Bulk
Published	2010
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side), Strain Relief
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	8.3mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE
Number of Contacts	3
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	10A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	39.5mm
Length	15.24mm
Width	61.8mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1776168 Product Details

1776168 Overview

A Screw, Socket package is included with it.This device's mounting type is Free Hanging (In-Line).Packaging for the product is carried out via a Bulk case.There is a product in the COMBICON MSTB Series.Further, there are features such as PA, 94V-0, to name only a few.This feature makes it more powerful in a number of ways due to its Retention Latches (Non-Wire Side), Strain Relief feature.It is mounted by Free Hanging, Plug-In.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.
