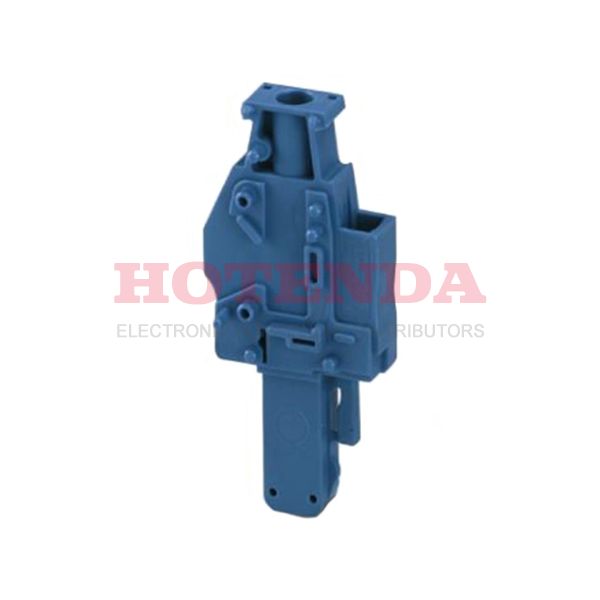

3045758

3045758

3045758

Phoenix Contact

3045758 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

3045758 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 6.439991g
PackagingBulk
Published 2013
Series CLIPLINE COMBI UPBV
Feature Interlocking (Side)
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Color Blue
Voltage - Rated 800V
HTS Code8536.69.40.40
Insulation Height 1.909 48.50mm
Reach Compliance Code not_compliant
Current Rating32A
Termination Style Screw
Approval Agency CSA, UL
Voltage 600V
Number of Levels 1
Current 30A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge or Range - AWG 10-26 AWG
Voltage - IEC 800V
Torque - Screw 0.6-0.8 Nm (5.3-7.1 Lb-In)
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.14-6mm2
Wire Strip Length 9mm
Current - IEC 32A
Screw Size M3
Length 21mm
Width 6.2mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:3093 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.504000$2.504
10$2.362264$23.62264
100$2.228551$222.8551
500$2.102407$1051.2035
1000$1.983403$1983.403

3045758 Product Details

3045758 Overview


Free Hanging (In-Line) is the mounting type of the device.The product is packaged in a Bulk case.There is a product in the CLIPLINE COMBI UPBV Series.It is more powerful in many ways due to its Interlocking (Side) feature.Mounting of the part is based on Free Hanging.Many Plug, Female Sockets products share the same benefits as this part.

3045758 Features


CLIPLINE COMBI UPBV series

3045758 Applications


There are a lot of Phoenix Contact 3045758 Terminal Blocks applications.

  • Military Technology
  • Blowers
  • Embedded systems
  • Telecommunications
  • Electrical substations
  • Instrumentation
  • Data Technology
  • All Electrical Machinery
  • Refrigeration control
  • Transportation
