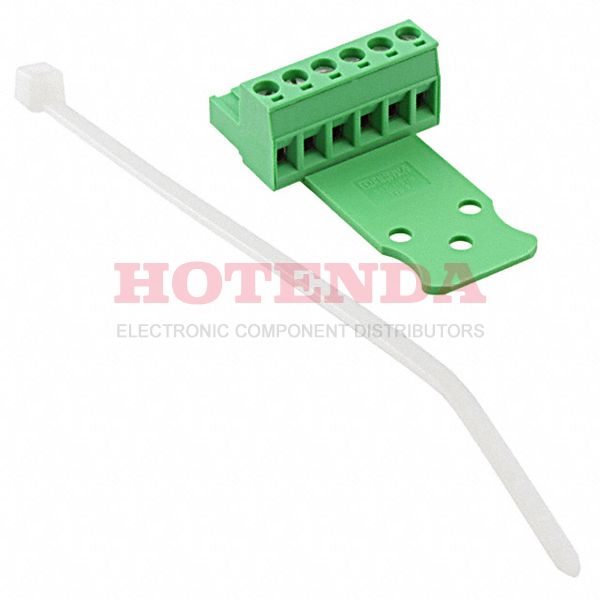

Name: 1776126
Brand: Phoenix Contact
SKU: 1776126
Price: 9.54000 USD
Availability: InStock

new

1776126

Manufacturer part number:1776126

Manufacturer:Phoenix Contact

Description:1776126 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1776126 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	128.999997g
Packaging	Bulk
Published	2003
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side), Strain Relief
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	6
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	POLYAMIDE, 94V-2
Pitch	0.200 5.08mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	10A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	6
Safety Approval	UL; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	39.5mm
Length	30.48mm
Width	61.8mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1776126 Product Details

1776126 Overview

Screw, Socket packaging is included.This device has a Free Hanging (In-Line) mounting type.Packaging is performed using a Bulk case.Specifically, it is one of the products in the COMBICON MSTB Series.There are also other features, like POLYAMIDE, 94V-2, to name a few.Its Retention Latches (Non-Wire Side), Strain Relief feature makes it more powerful in a number of ways.Free Hanging is used to mount the part.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
