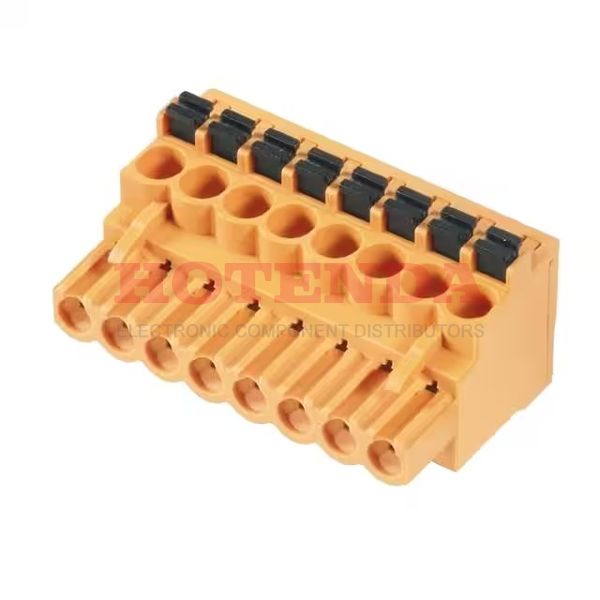

Name: 1001630000
Brand: Weidmüller
SKU: 1001630000
Price: 6.34000 USD
Availability: InStock

new-10%

1001630000

Manufacturer part number:1001630000

Manufacturer:Weidmüller

Description:1001630000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1001630000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Box
Published	2009
Series	Omnimate BL
Feature	Retention Latches (Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Ingress Protection	IP20
Insulation Height	0.815 20.70mm
Current Rating	19A
Termination Style	Screwless - Leg Spring, Push-In Spring
Approval Agency	CSA, cURus
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	18.5A
Voltage - IEC	400V
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Current - IEC	24A
Number of Positions Per Level	12
Stripping Length	10mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1001630000 Product Details

1001630000 Overview

This device has a Free Hanging (In-Line) mounting type.It is necessary to use a Box case for packaging the product.Specifically, it is one of the products in the Omnimate BL Series.In addition, there are other features such as STANDARD: UL 94V-0, to mention only a few.A number of aspects of its Retention Latches (Wire Side) feature make it more powerful.There is a Free Hanging mount on the part.In this case, the device runs at -50°C~100°C Operating Temperature.It shares many benefts with other Plug, Female Sockets products.
