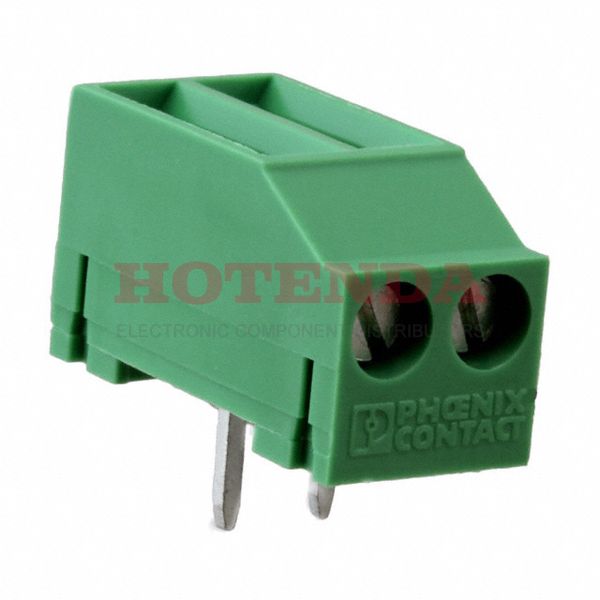

Name: 1771529
Brand: Phoenix Contact
SKU: 1771529
Price: 3.52000 USD
Availability: InStock

new-10%

1771529

Manufacturer part number:1771529

Manufacturer:Phoenix Contact

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG COMBICON MKDSFW

Case Package:SOT-23

Datasheet:1771529 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	4.320014g
Packaging	Bulk
Series	COMBICON MKDSFW
Published	2011
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	400V
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	20.5mm
Reach Compliance Code	unknown
Current Rating	24A
Wire Gauge	12-30 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	24A
Number of Levels	1
Current	16A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL; CSA
Mating Orientation	Vertical with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	2
Fastening Method	SOLDER
Height	15.5mm
Length	10mm
Width	16.2mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1771529 Product Details

1771529 Overview

It comes in Screw packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON MKDSFW Series of products.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.The supply voltage of this chip should not exceed 250V.
