Name: 1771017
Brand: Phoenix Contact
SKU: 1771017
Price: 1.40000 USD
Availability: InStock

new-10%

1771017

Manufacturer part number:1771017

Manufacturer:Phoenix Contact

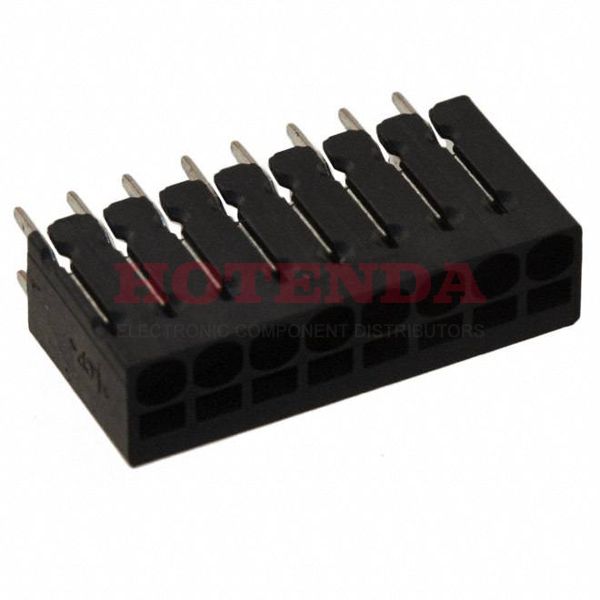

Description:0.098 2.50mm Black Tape & Reel (TR) Liquid Crystal Polymer (LCP) Through Hole Vertical with Board Screwless - Spring Cage, Tension Clamp 1 Levels 20-26 AWG COMBICON PTSM

Case Package:SOT-23

Datasheet:1771017 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Packaging	Tape & Reel (TR)
Series	COMBICON PTSM
Published	2010
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Color	Black
Voltage - Rated	200V
Pitch	0.098 2.50mm
Orientation	Straight
Current Rating	6A
Number of Contacts	8
Wire Gauge	20-26 AWG
Voltage	150V
Max Current Rating	6A
Number of Levels	1
Current	5A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	20 AWG
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Mating Orientation	Vertical with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Length	5mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1771017 Product Details

1771017 Overview

Through Hole indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the COMBICON PTSM Series.By Through Hole, the part is mounted.
