Name: 1768891
Brand: Phoenix Contact
SKU: 1768891
Price: 21.40000 USD
Availability: InStock

new

1768891

Manufacturer part number:1768891

Manufacturer:Phoenix Contact

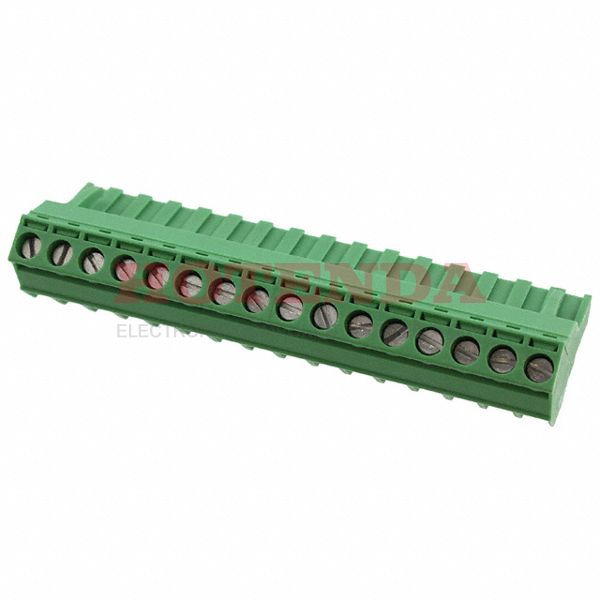

Description:Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON SMSTB Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1768891 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	907.18474g
Packaging	Bulk
Series	COMBICON SMSTB
Published	2012
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	25.6mm
Insulation Height	0.610 15.49mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CSA, cULus
Voltage	300V
Max Supply Voltage	320V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	16
Safety Approval	CSA; CUL; GOST; UL
Plug Wire Entry	225°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	16
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	15.5mm
Length	80mm
Width	80mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1768891 Product Details

1768891 Overview

It comes in Screw, Socket packaging.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the COMBICON SMSTB Series of products.In addition, there are other features such as PA, UL 94V-0, to mention only a few.Its Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.The part is mounted by Free Hanging, Plug-In.The supply voltage of this chip should not exceed 320V.This part shares lots of benefits with other Plug, Female Sockets products.
