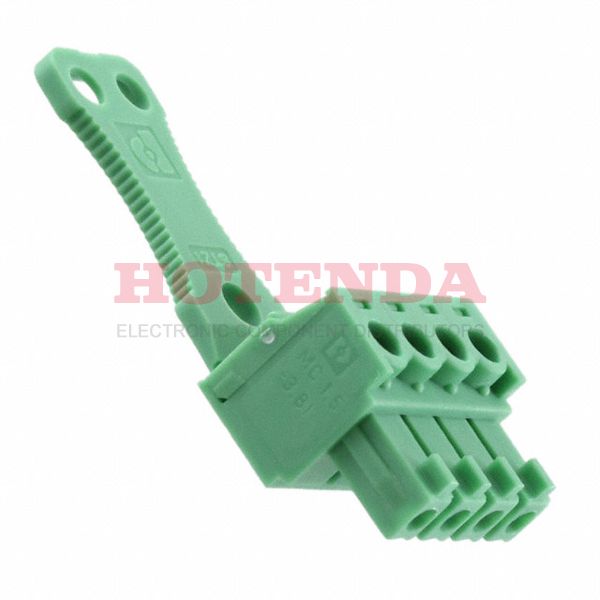

Name: 1767461
Brand: Phoenix Contact
SKU: 1767461
Price: 5.86000 USD
Availability: InStock

new-10%

1767461

Manufacturer part number:1767461

Manufacturer:Phoenix Contact

Description:1767461 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1767461 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2010
Series	COMBICON MC
Feature	Strain Relief
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	160V
Pitch	0.150 3.81mm
Reach Compliance Code	not_compliant
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	4
Screw Size	M2
Height	14mm
Length	11.6mm
Width	41mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1767461 Product Details

1767461 Overview

A Screw, Socket packaging is included.Free Hanging (In-Line) indicates that the device is mounted.The product is packaged in a Bulk case.This is from the COMBICON MC Series.This feature renders it more powerful in a number of ways because of its Strain Relief feature.The part is mounted by Free Hanging.Many Plug, Female Sockets products share the same benefits as this part.
