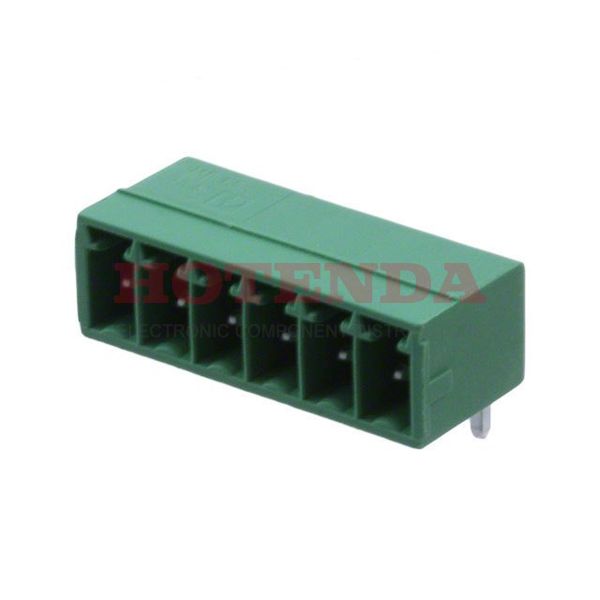

Name: 1844252
Brand: Phoenix Contact
SKU: 1844252
Price: 3.00000 USD
Availability: InStock

new-10%

1844252

Manufacturer part number:1844252

Manufacturer:Phoenix Contact

Description:1844252 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1844252 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2006
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Voltage - Rated DC	640mV
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	6
Number of Decks	1
Voltage - IEC	250V
Number of Ways	6
Safety Approval	CB; CCA; CSA; CUL; GOST; UL
Header Orientation	90°, Right Angle
Current - IEC	12A
Fastening Method	CONNECTOR
Height	10.65mm
Length	22.4mm
Width	22.4mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1844252 Product Details

1844252 Overview

The product comes in a package of Plug.There is a Through Hole mounting type for the device.In order to package the product, a Bulk case is used.Product number COMBICON MC belongs to the COMBICON MC Series.There's a Through Hole mount on the part.It shares many benefts with other Header, Male Pins, Shrouded (4 Side) products.
