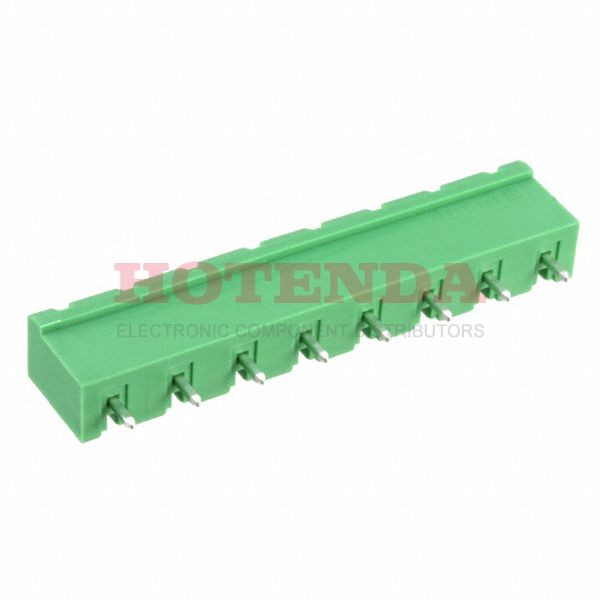

Name: 1766725
Brand: Phoenix Contact
SKU: 1766725
Price: 5.51000 USD
Availability: InStock

new-10%

1766725

Manufacturer part number:1766725

Manufacturer:Phoenix Contact

Description:1766725 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1766725 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	1.50003kg
Packaging	Bulk
Published	2012
Series	COMBICON GMSTBVA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
Voltage - Rated DC	400V
Pitch	0.295 7.50mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Current Rating	12A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	10A
Number of Poles	8
Number of Decks	1
Current - UL	15A
Voltage - IEC	630V
Number of Ways	8
Safety Approval	UL
Header Orientation	Vertical
Height	15.9mm
Length	60mm
Width	60mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1766725 Product Details

1766725 Overview

The packaging is Plug.Through Hole is the mounting type of the device.Packaged in a Bulk case.A product of the COMBICON GMSTBVA Series, it belongs to the range of products of that series.Additionally, there are other features such as PA, 94V-0.It's mounted by Through Hole.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
