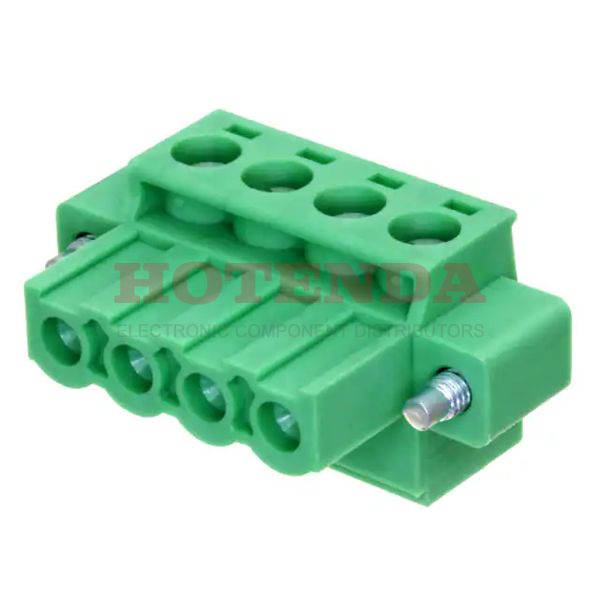

Name: 1805327
Brand: Phoenix Contact
SKU: 1805327
Price: 7.32000 USD
Availability: InStock

new

1805327

Manufacturer part number:1805327

Manufacturer:Phoenix Contact

Description:1805327 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1805327 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	131g
Packaging	Bulk
Published	2010
Series	COMBICON MSTBT
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	4
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	4
Safety Approval	UL; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	30.12mm
Width	30.12mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1805327 Product Details

1805327 Overview

Packaging is Screw, Socket.Free Hanging (In-Line) is the mounting type for the device.To package the product, we use a Bulk case.Among the products in the COMBICON MSTBT Series, it is one of the most popular.A number of aspects of its Mating Flange feature make it more powerful.Part Free Hanging, Panel is mounted to the part.It is recommended that this chip's supply voltage does not exceed 250V.It is a part that shares many benefits with other products from the Plug, Female Sockets line.
