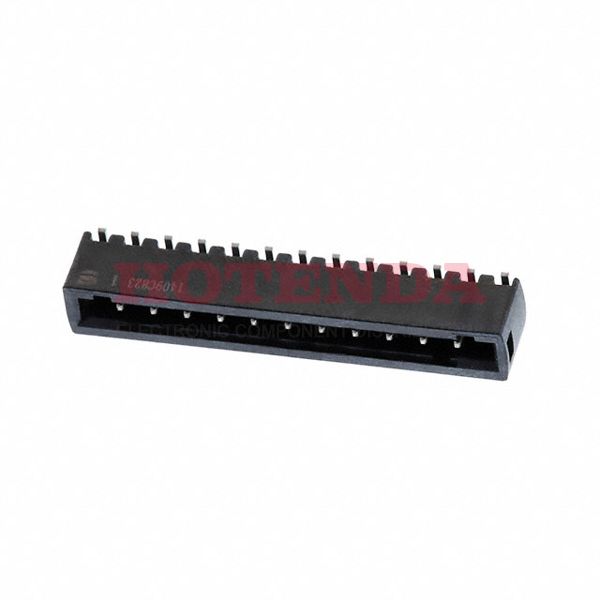

Name: 14111113002000
Brand: HARTING
SKU: 14111113002000
Price: 3.67000 USD
Availability: InStock

new-10%

14111113002000

Manufacturer part number:14111113002000

Manufacturer:HARTING

Description:14111113002000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from HARTING stock available on our website

Case Package:SOT-23

Datasheet:14111113002000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Copper Alloy
Mount	Panel, Surface Mount
Mounting Type	Surface Mount
Material	Glass fibre, Polymer
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-40°C~125°C
Packaging	Cut Tape (CT)
Series	har-flexicon®
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Gender	Male
Voltage - Rated	160V
HTS Code	8536.69.40.30
Subcategory	Headers and Edge Type Connectors
Pitch	0.100 2.54mm
Total Number of Contacts	11
Orientation	Horizontal
Depth	5mm
Insulation Height	0.197 5.00mm
Current Rating	7.3A
Number of Conductors	ONE
Reference Standard	UL
Termination Style	Solder
Reliability	COMMERCIAL
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Contact Style	SQ PIN-SKT
Contact Resistance	20mOhm
Voltage	160V
Polarization Key	POLARIZED HOUSING
Number of Levels	1
Current	6A
Contact Pattern	RECTANGULAR
Insertion Force-Max	4.8928 N
Contact Mating Finish	Tin
Header Orientation	90°, Right Angle
Number of Positions Per Level	11
Length	33.25mm
Width	7mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

14111113002000 Product Details

14111113002000 Overview

This device has a mounting type of Surface Mount.This product is packaged in a case marked Cut Tape (CT).The product is part of the har-flexicon? Series.It is more powerful in many ways due to its Board Guide feature.Part Panel, Surface Mount is mounted to the part.As a result, the device runs at -40°C~125°C Operating Temperature.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
