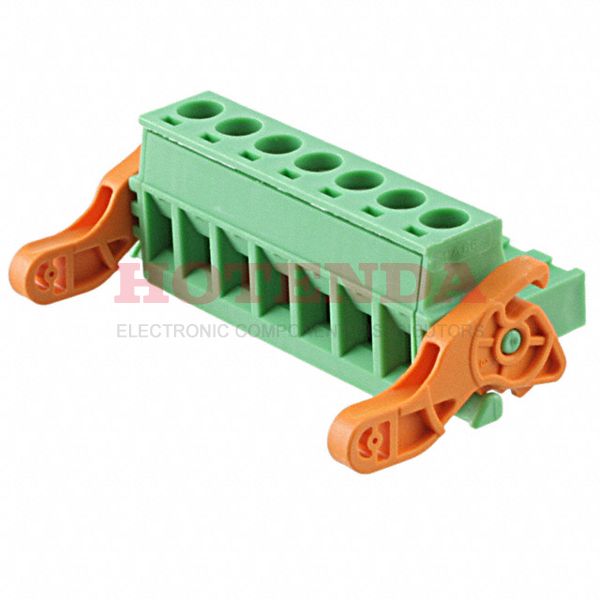

Name: 1808938
Brand: Phoenix Contact
SKU: 1808938
Price: 7.49000 USD
Availability: InStock

new

1808938

Manufacturer part number:1808938

Manufacturer:Phoenix Contact

Description:1808938 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1808938 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2012
Series	COMBICON MSTB
Feature	Ejector Latches
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	cULus
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Number of Positions Per Level	7
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1808938 Product Details

1808938 Overview

Packaging is in the form of Screw.Free Hanging (In-Line) indicates that the device is mounted.It has been determined that a Bulk case is necessary to package the product.Specifically, it is one of the products in the COMBICON MSTB Series.A number of advantages are provided by its Ejector Latches feature.The part is mounted by Free Hanging.This part shares lots of benefits with other Plug, Female Sockets products.
