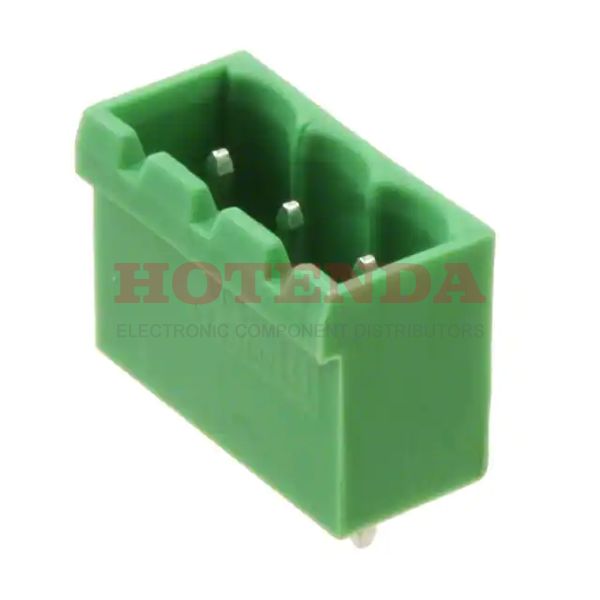

Name: 1755749
Brand: Phoenix Contact
SKU: 1755749
Price: 1.14000 USD
Availability: InStock

new-10%

1755749

Manufacturer part number:1755749

Manufacturer:Phoenix Contact

Description:1755749 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1755749 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	154.999997g
Packaging	Bulk
Published	2005
Series	COMBICON MSTBVA
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	3
Color	Green
Number of Rows	1
Voltage - Rated	250V
Voltage - Rated DC	250V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Current Rating	12A
Termination Style	Solder
Voltage - Rated AC	250V
Approval Agency	CB, CSA, UL, VDE, cULus
Lead Pitch	5.08mm
Number of Contacts	3
Housing Color	Green
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Poles	3
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	12A
Voltage - IEC	630V
Positions Per Level	3
Header Orientation	Vertical
Current - IEC	12A
Number of Positions Per Level	3
Height	15.9mm
Length	17.24mm
Width	17.24mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1755749 Product Details

1755749 Overview

You'll get Plug packages.There is a Through Hole mounting type for the device.Packaging for the product is carried out via a Bulk case.COMBICON MSTBVA Series product.It is mounted by Through Hole.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
