Name: 1777950
Brand: Phoenix Contact
SKU: 1777950
Price: 53.99000 USD
Availability: InStock

new

1777950

Manufacturer part number:1777950

Manufacturer:Phoenix Contact

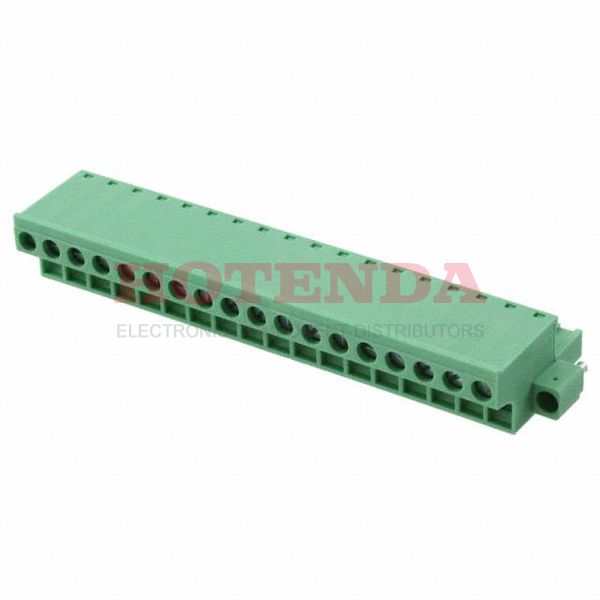

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON FRONT-MSTB Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1777950 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	135.000004g
Packaging	Bulk
Series	COMBICON FRONT-MSTB
Published	2010
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	18
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	1.083 27.51mm
Current Rating	12A
Termination Style	Screw - Pressure Clip
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	18
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Screw Size	M2.5
Wire Cross Section	2.5 mm2
Height	27.2mm
Length	15mm
Width	101.24mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1777950 Product Details

1777950 Overview

This product is packaged in a Screw, Socket box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the COMBICON FRONT-MSTB Series.Furthermore, there are other features such as PA, 94V-0, to name a few.In many ways, Mating Flange, Retention Latches (Non-Wire Side) makes it more powerful.By Free Hanging, the part is mounted.It is a part that shares many benefits with other products from the Plug, Female Sockets line.
