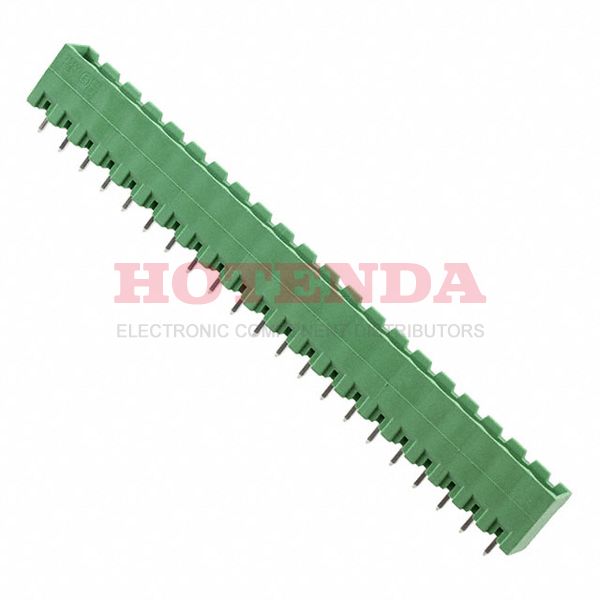

Name: 1755697
Brand: Phoenix Contact
SKU: 1755697
Price: 7.12000 USD
Availability: InStock

new

1755697

Manufacturer part number:1755697

Manufacturer:Phoenix Contact

Description:1755697 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1755697 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	453.59237g
Packaging	Bulk
Published	2011
Series	COMBICON MSTBVA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	21
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.154 3.90mm
Number of Levels	1
Current	12A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	400V
Number of Ways	21
Safety Approval	UL
Header Orientation	Vertical
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1755697 Product Details

1755697 Overview

Mounting type Through Hole is selected for the device.We pack the product in a Bulk case.Among the products in the COMBICON MSTBVA Series, it is one of the most popular.Additionally, there are features like PBT, 94V-0, just to name a few.It is mounted by Through Hole.In addition to its benefits, this part also shares many with the other products in the Header, Male Pins, Shrouded (4 Side) series.
