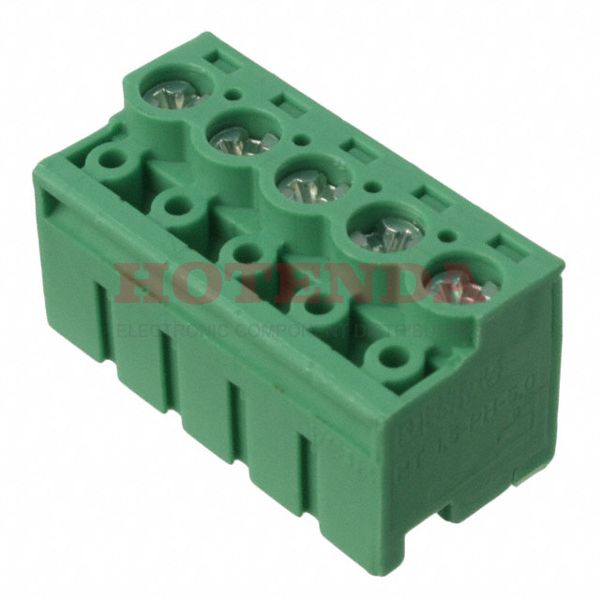

Name: 1755619
Brand: Phoenix Contact
SKU: 1755619
Price: 1.55000 USD
Availability: InStock

new-10%

1755619

Manufacturer part number:1755619

Manufacturer:Phoenix Contact

Description:1755619 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1755619 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2010
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug for Unshrouded Header
Color	Green
Gender	Female
Voltage - Rated	250V
Pitch	0.197 5.00mm
Orientation	Right Angle
Insulation Height	0.518 13.15mm
Reach Compliance Code	unknown
Current Rating	10A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	5
Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	630V
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	6mm
Height	13.15mm
Length	12.2mm
Width	25mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1755619 Product Details

1755619 Overview

It comes in a Screw, Socket package.There is a Free Hanging (In-Line) mounting type for the device.To package the product, a Bulk case is used.This product is part of the COMBICON PT Series.There's a Cable, Free Hanging on the part.There are a lot of similarities between this part and other Plug for Unshrouded Header products.
