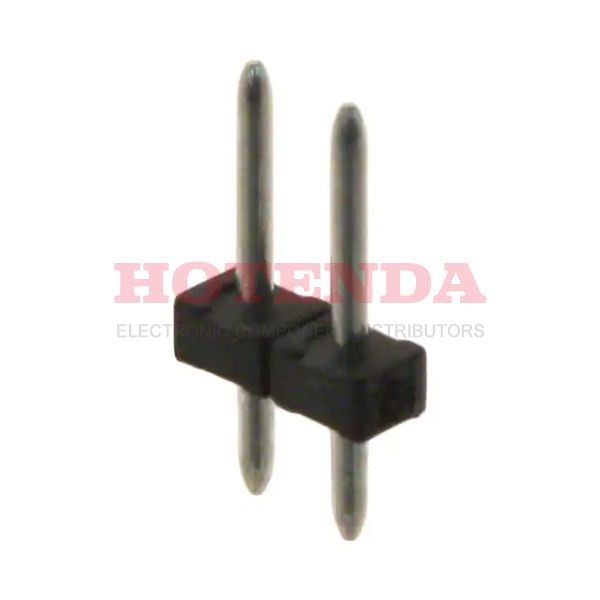

Name: 1945096
Brand: Phoenix Contact
SKU: 1945096
Price: 0.18000 USD
Availability: InStock

new-10%

1945096

Manufacturer part number:1945096

Manufacturer:Phoenix Contact

Description:1945096 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1945096 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	259.993477mg
Packaging	Bulk
Published	2005
Series	COMBICON PST
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Unshrouded
Number of Positions	2
Color	Black
Number of Rows	1
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Straight
Depth	2.8mm
Insulation Height	0.512 13.00mm
Current Rating	8A
Termination Style	Solder
Voltage - Rated AC	160V
Approval Agency	UL
Voltage	300V
Contact Tail Length	0.150 3.81mm
Max Current Rating	8A
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	250V
Number of Ways	2
Header Orientation	Vertical
Number of Positions Per Level	2
Fastening Method	CONNECTOR
Length	7mm
Width	3.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1945096 Product Details

1945096 Overview

The device's mounting type is Through Hole.Packaging for the product is carried out via a Bulk case.The product belongs to the COMBICON PST Series.By Through Hole it's mounted.There are many benefits that this part shares with other Header, Male Pins, Unshrouded products as well.
