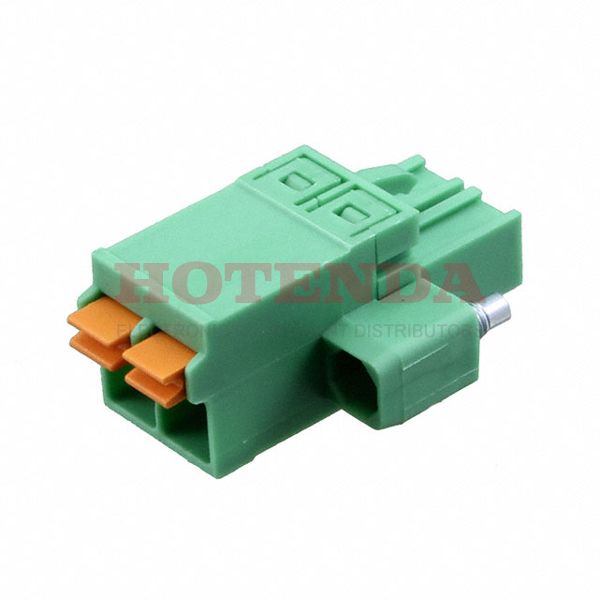

Name: 1754791
Brand: Phoenix Contact
SKU: 1754791
Price: 3.09000 USD
Availability: InStock

new-10%

1754791

Manufacturer part number:1754791

Manufacturer:Phoenix Contact

Description:1754791 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1754791 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2011
Series	COMBICON FKCN
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	320V
Pitch	0.200 5.08mm
Insulation Height	0.429 10.90mm
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-24 AWG
Voltage - IEC	630V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Number of Positions Per Level	2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1754791 Product Details

1754791 Overview

Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.This is from the COMBICON FKCN Series.In many ways, it is more powerful due to its Mating Flange, Retention Latches (Non-Wire Side) feature.You've got Free Hanging mounted on the part.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
