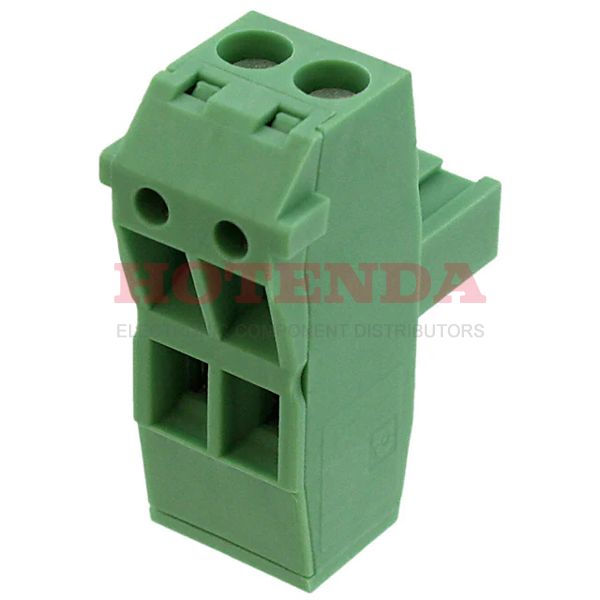

Name: 1853010
Brand: Phoenix Contact
SKU: 1853010
Price: 4.34000 USD
Availability: InStock

new-10%

1853010

Manufacturer part number:1853010

Manufacturer:Phoenix Contact

Description:1853010 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1853010 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	135.000004g
Packaging	Bulk
Published	2011
Series	COMBICON TMSTBP
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	28.9mm
Insulation Height	1.138 28.90mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1 (Mate), 2 (Input)
Current	12A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Positions Per Level	2 (Mate), 4 (Input)
Number of Ways	2
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	2
Screw Size	M3
Height	21.5mm
Length	12.16mm
Width	21.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1853010 Product Details

1853010 Overview

A Screw, Socket package is included with it.Free Hanging (In-Line) is the mounting type for the device.A Bulk case is used for packaging.The product is a member of the COMBICON TMSTBP Series.In many ways, it is more powerful due to its Retention Latches (Non-Wire Side) feature.In this case, Cable, Free Hanging mounts the part.This part shares lots of benefits with other Plug, Female Sockets products.
