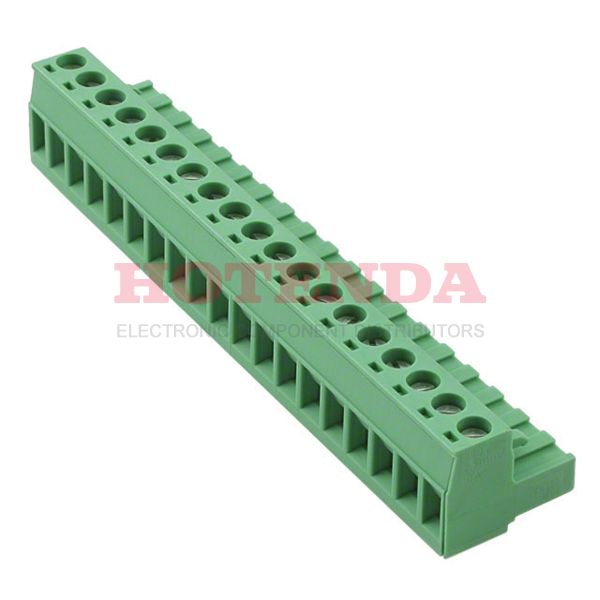

Name: 1754782
Brand: Phoenix Contact
SKU: 1754782
Price: 15.57000 USD
Availability: InStock

new

1754782

Manufacturer part number:1754782

Manufacturer:Phoenix Contact

Description:1754782 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1754782 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	350.000009g
Packaging	Bulk
Published	2011
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	19
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Right Angle
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	19
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	19
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	15mm
Width	95mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1754782 Product Details

1754782 Overview

The packaging is Screw, Socket.Free Hanging (In-Line) is the mounting type of the device.It has been determined that a Bulk case is necessary to package the product.Product number COMBICON MSTB belongs to the COMBICON MSTB Series.In addition, there are other features such as PA, 94V-0, to mention only a few.Several benefits come from the Retention Latches (Non-Wire Side) feature.This part is mounted by Cable, Free Hanging. There are many benefits that this part shares with other Plug, Female Sockets products as well.
