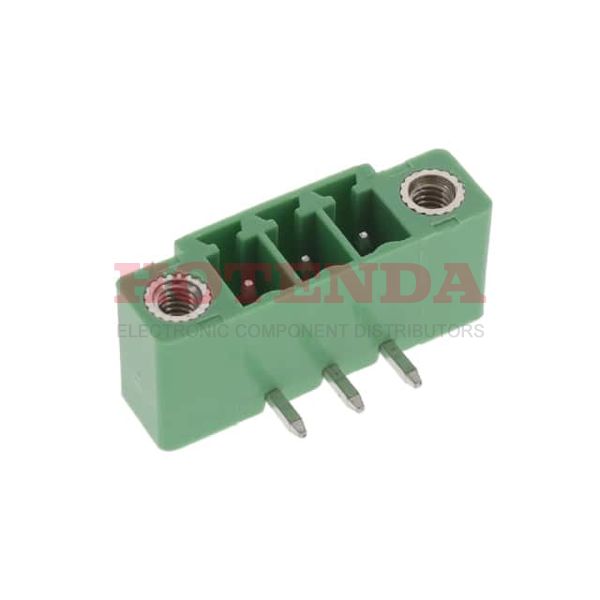

0395166003

0395166003

0395166003

Molex

0395166003 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

SOT-23

0395166003 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Mounting Type Through Hole
Housing Material Polyamide (PA66), Nylon 6/6
Operating Temperature-40°C~105°C
PackagingBulk
Series Eurostyle ESE 39516
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Color Green
Pitch 0.150 3.81mm
Insulation Height 0.270 6.86mm
Termination Style Solder
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 8A
Header Orientation 90°, Right Angle
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
In-Stock:6045 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.981390$0.98139
10$0.925840$9.2584
100$0.873433$87.3433
500$0.823994$411.997
1000$0.777353$777.353

0395166003 Product Details

0395166003 Overview


Mounting type is Through Hole.Packaging the product involves using a Bulk case.There is a product in the Eurostyle ESE 39516 Series.In many ways, its Mating Flange feature makes it more powerful.It runs at -40°C~105°C Operating Temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.

0395166003 Features


Eurostyle ESE 39516 series

0395166003 Applications


There are a lot of Molex 0395166003 Terminal Blocks applications.

  • Blowers
  • Data Technology
  • LED municipal outdoor and street lighting
  • Communication
  • Measuring & Control Technology
  • All Electrical Machinery
  • Datacom
  • Telecommunications
  • Industrial Automation
  • Control panels
