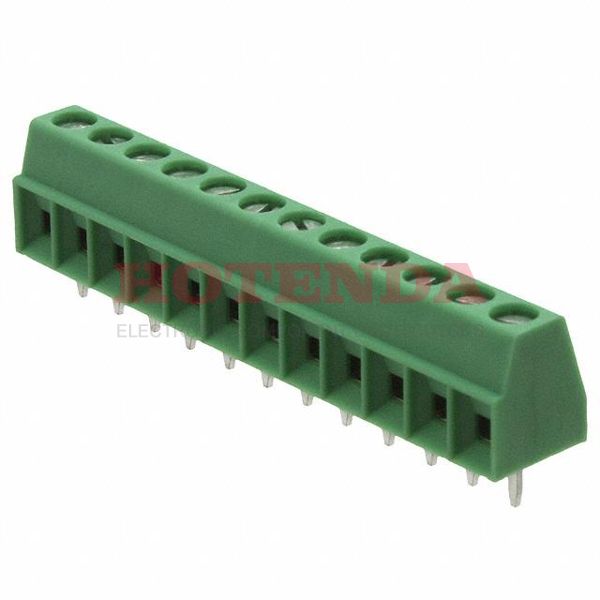

Name: 1751345
Brand: Phoenix Contact
SKU: 1751345
Price: 7.92000 USD
Availability: InStock

new

1751345

Manufacturer part number:1751345

Manufacturer:Phoenix Contact

Description:0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG COMBICON MKDS

Case Package:SOT-23

Datasheet:1751345 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	6.200012g
Packaging	Bulk
Series	COMBICON MKDS
Published	2005
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	200V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Straight
Depth	7.3mm
Current Rating	13.5A
Approval Agency	CB, CSA, UL, cULus
Number of Contacts	12
Wire Gauge	16-30 AWG
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	12
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2
Stripping Length	5mm
Height	12mm
Length	42.5mm
Width	7.3mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1751345 Product Details

1751345 Overview

Currently, it is packaged in Screw.Mounting type Through Hole is assigned to the device.Packaging the product involves using a Bulk case.Among the products in the COMBICON MKDS Series, it is one of the most popular.There are also other features, like PA, 94V-0, to name a few.Through Hole is the mounting point for the part.This chip shouldn't have a supply voltage over 160V.
