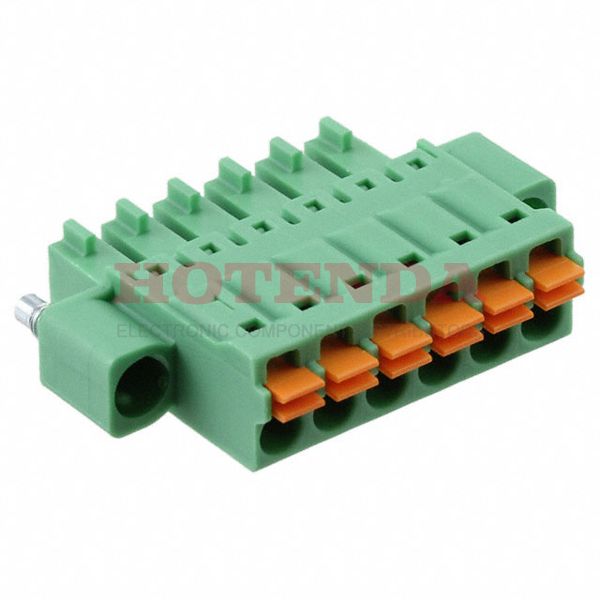

Name: 1748396
Brand: Phoenix Contact
SKU: 1748396
Price: 6.06000 USD
Availability: InStock

new-10%

1748396

Manufacturer part number:1748396

Manufacturer:Phoenix Contact

Description:1748396 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1748396 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	4.299999g
Packaging	Bulk
Published	2011
Series	COMBICON FMC
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	160V
Pitch	0.150 3.81mm
Insulation Height	0.307 7.80mm
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Voltage	150V
Number of Levels	1
Current	8A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	320V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Number of Positions Per Level	6
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1748396 Product Details

1748396 Overview

Mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.This product is part of the COMBICON FMC Series.Several benefits come from the Mating Flange feature.Free Hanging represents the mounting point for the part.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
