1638790000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

SOT-23

1638790000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 16 Weeks
Contact MaterialCopper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)
Operating Temperature-50°C~100°C
PackagingBulk
Published 2009
Series Omnimate BL
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Type Plug, Female Sockets
Color Black
Number of Rows 1
Voltage - Rated 300V
Additional FeatureHIGH DENSITY
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.138 3.50mm
Orientation Straight
Ingress ProtectionIP20
Insulation Height 0.884 22.45mm
Current Rating12A
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Approval Agency CSA
Number of Contacts 3
UL Flammability Code 94V-0
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 14 AWG
Wire/Cable Gauge 28 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 14-28 AWG
Voltage - IEC 320V
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.2-1.5mm2
Current - IEC 12A
Screw Size M2
Stripping Length 6mm
Height 22.5mm
Length 10.5mm
Width 11.6mm
Material Flammability Rating UL94 V-0
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:2167 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.352000$3.352
10$3.162264$31.62264
100$2.983268$298.3268
500$2.814404$1407.202
1000$2.655098$2655.098

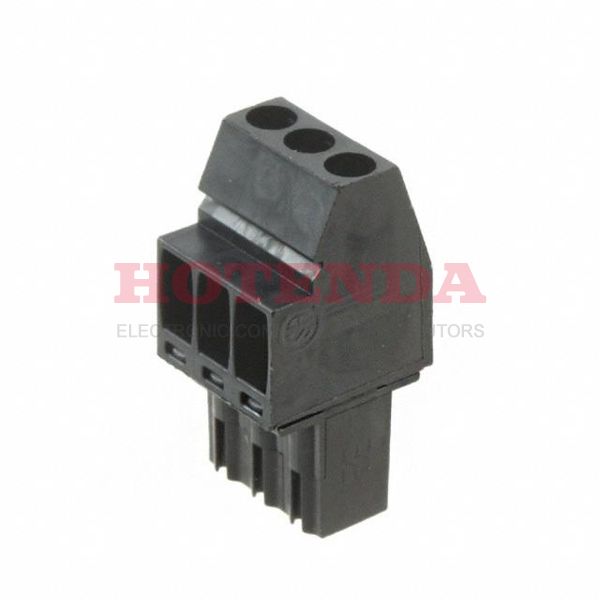

1638790000 Product Details

1638790000 Overview


Free Hanging (In-Line) is the mounting type for the device.We pack the product in a Bulk case.It's part of the Omnimate BL Series.There are also other features, like HIGH DENSITY, to name a few.There is a Cable, Free Hanging mount on the part.This device runs at -50°C~100°C operating temperature.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.

1638790000 Features


Omnimate BL series

1638790000 Applications


There are a lot of Weidmüller 1638790000 Terminal Blocks applications.

  • Refrigeration control
  • Telecommunications
  • Blowers
  • Control panels
  • Datacom
  • All Electrical Machinery
  • Measuring & Control Technology
  • Anywhere power is distributed
  • Transportation
  • Embedded systems
